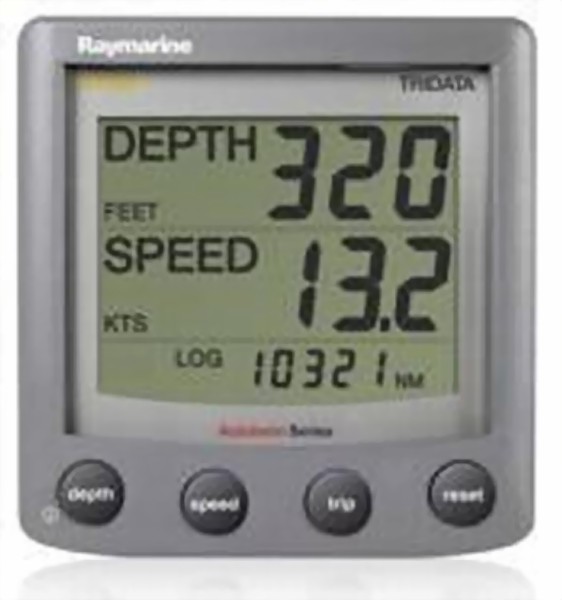

Raymarine ST60 Plus Tridata Repeater

Raymarine ST60 Plus Tridata Repeater

BTW (21%)
Product uit assortiment

Raymarine ST60 Plus Tridata Repeater
In de rubriek Raymarine vindt u de producten en prijzen van Raymarine. Een selectie Raymarine producten die u kunt kopen zoals een radar, kaartplotter, stuurautomaat, marifoon, navigatie apparatuur, seatalk, nmea 2000, transducer. Volledige fabrieksgarantie op de Raymarine producten. Verzenden of afhalen is mogelijk.

Tips en advies

De gerelateerde producten in de rubrieken Radar Plotter en Stuurautomaat en Instrumenten zijn voor u mogelijk ook interessant.

Contact

Heeft u een vraag. Neem contact met ons op per Email voor tips en advies over de Raymarine ST60 Plus Tridata Repeater.

Specificaties

ST60 Tridata Combined Depth, Speed and temperature repeater display. For use with Tridata systems of any compatible SeaTalk devices

ST60 PLUS Additional Features:

  • New design
  • New bezel to match C & E Series Displays
  • On/Off Softkey to switch displays on & off independently
  • Tridata display will now repeat SOG from GPS
  • Transducer On/Off included in depth system for fishfinder integration
ST60 offers everything from stand-alone display units to sophisticated, fully-integrated systems with intelligent repeaters, remote controls and flexible mounting options. Significantly enhanced displays ensure superior viewing angles for both day and night conditions. Simple, push-button controls make ST60 instruments extremely easy to use. Years of experience ensure ST60?s superior quality and performance ? which is what our reputation is built on, and what makes Raymarine instruments the preferred choice for cruising and racing yachtsmen worldwide.

ST60 Features

Backlighting Three levels plus off
Display Digits Size 1.43" (36.4mm), Tridata 0.75" (19mm), analogue 0.5" (13mm) Maxiview 1.6" (41.2mm)
Environmental Waterproofing to U.S.C.G. CFR-46 Standard
Interfaces SeaTalk or NMEA 0183 via ST60 Multi or interface box
Keypad Lighting backlit (except MaxiView)
Mounting Standard console mounting, optional low profile flush mount(order number A25003) and trunion mount kit (order number E25009)
Operating Temp 14ºF ? 158ºF (-10ºC ? 70ºC)
Operating Voltage 10V ? 16V
Operation Master or repeater
Power Consumption 45mA (analogue 65mA)
Remote Operation Optional remote keypad or control via ST7001 Autopilot control head
Transducer Cable Lengths 45' (13.8m) standard, long arm wind 97.5' (30m), short arm wind 97.5' (30m) and rotavecta 65' (20m)

Specifications

Depth performance: 2.6' ? 600' (0.8 ? 180 m)
Maximum and minimum depth display
Depth trend indicator
Adjustable display response
Transducer keel or waterline offset
Autopilot status indication
Speed: 0 ? 60 knots (kts, mph or kph)
Maximum/average speed
Cumulative Log: 0 ? 99,999nm
Resettable trip: 0 ? 999nm
1/100 knot resolution
Sea temperature
Stopwatch/lap time
10 and 5 minute race start timer
VMG (Velocity Made Good)
SOG (requires data on SeaTalk)
Autopilot status indicator
Speed Calibration via SOG (Speed over Ground)
GPS Input required
