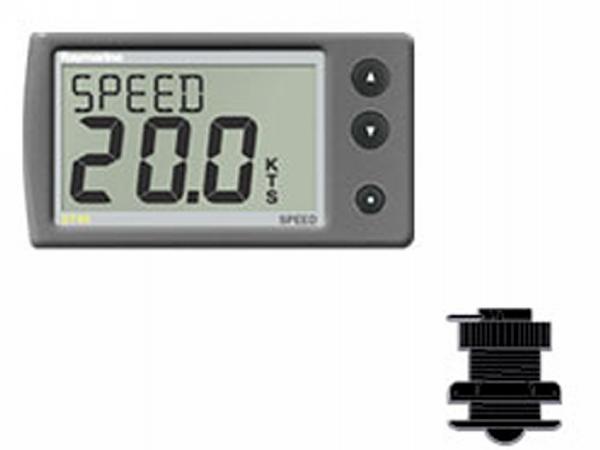

Raymarine ST40 Snelheid Thruhull Systeem

ST40 Speed System with valox plastic self sealing Thru-Hull speed transducer for inboard power boats and sailing vessels

Compact in size and design, yet big on performance and features, ST40 Speed offers all the essential speed data in clear 7- segment, 28mm sized digit displays. Current, Maximum and Average Speed are displayed in either knots (KTS), miles per hour, (MPH) or kilometers pre hour (KPH). Log and trip information is presented in nautical miles, (NM), statute miles (M) or kilometers (KM). Water temperature data is displayed in either degrees Celsius or Fahrenheit.

ST40 Speed has extra large digits and razor sharp LCD displays for outstanding visibility in all light conditions. Fully compatible with SeaTalk, ST40 Speed integrates with Raymarine autopilots and navigation equipment. It also offers a choice of snap-on bezels in three different finishes for surface and bracket mounting options.

ST40 Features

Seven segment digits (1.1" digital and 0.7" analog)
Surface and bracket mount options
SeaTalk integration for sharing and repeating navigation data
Optional clip-on bezels
Three levels of backlighting
Self-sealing speed transducer for easy cleaning and maintenance
Backlit push button controls
Waterproof to CFR-46 standard
Operating voltage 7.5V to 16.5V
Low operating current (40mA)
Compatible as repeaters with ST30, ST50, ST50 Plus, ST60, ST80, Raydata and the L760 Plus, L755 Plus and L1250 Fishfinders

Specifications

Boss diameter 55 mm (2.20 inches).
Log range 0 to 99999.
Operating temperature: 0°C to +70°C.
Overall dimensions 126 mm x 70 mm x 38 mm (5.00 inches x 2.80 inches x 1.55 inches).
Power Consumption 35 mA typical. 70 mA with maximum backlighting.
Speed range: 0 to 99.9 knots.
Temperature reading range -10°C to +40°C.
Trip reading range 0 to 999 nautical miles.
