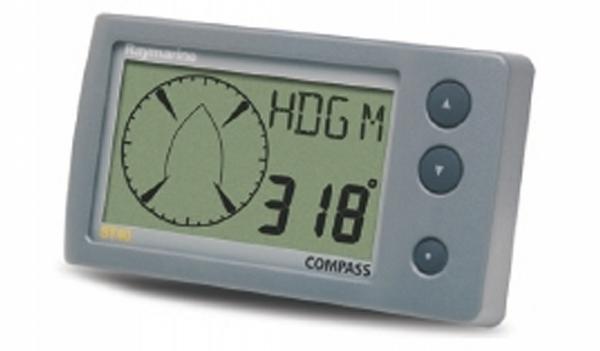

Raymarine ST40 Kompas Systeem

Electronic compass system complete with remote fluxgate sensor

Compact in size and design, yet big on performance and features, ST40 Compass offers all essential heading information in a clear 7-segment digital and 36-segment analogue dial display. Heading data is provided in true and magnetic bearing mode. ST40 Compass allows the user to lock a bearing manually or automatically via a Raymarine autopilot course computer. In this mode ST40 Compass shows deviations from locked bearing and the direction to steer to achieve the locked bearing heading.

As with all ST40 displays, ST40 Compass has extra large digits and razor sharp LCD displays for outstanding visibility in all light conditions. Fully compatible with SeaTalk, ST40 Compass offers a choice of snap-on bezels in three different finishes for surface and bracket mounting options.

ST40 Features

Seven segment digits (1.1" digital and 0.7" analog)
Surface and bracket mount options
SeaTalk integration for sharing and repeating navigation data
Optional clip-on bezels
Three levels of backlighting
Self-sealing speed transducer for easy cleaning and maintenance
Backlit push button controls
Waterproof to CFR-46 standard
Operating voltage 7.5V to 16.5V
Low operating current (40mA)
Compatible as repeaters with ST30, ST50, ST50 Plus, ST60, ST80, Raydata and the L760 Plus, L755 Plus and L1250 Fishfinders

Specifications

Boss diameter 55 mm (2.20 inches).
Heading Modes Magnetic, True, and Locked Heading
Off course alarm 2° to 30° (port or starboard).
Operating temperature: 0°C to +70°C.
Overall dimensions 126 mm x 70 mm x 38 mm (5.00 inches x 2.80 inches x 1.55 inches).
Power Consumption 35 mA typical. 70 mA with maximum backlighting.
