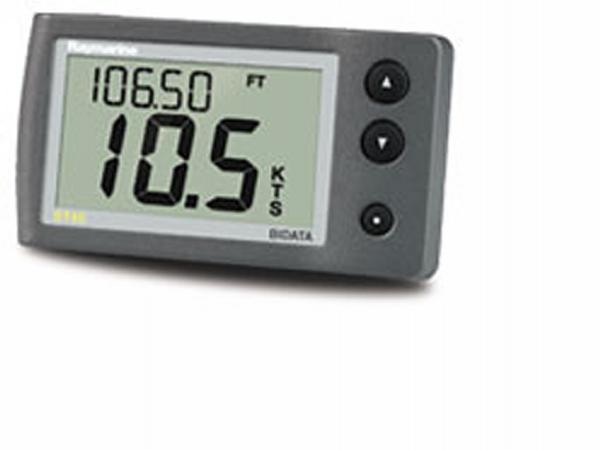

Raymarine ST40 Bidata

Raymarine ST40 Bidata

Product uit assortiment

Raymarine ST40 Bidata
In de rubriek Raymarine vindt u de producten en prijzen van Raymarine. Een selectie Raymarine producten die u kunt kopen zoals een radar, kaartplotter, stuurautomaat, marifoon, navigatie apparatuur, seatalk, nmea 2000, transducer. Volledige fabrieksgarantie op de Raymarine producten. Verzenden of afhalen is mogelijk.

Tips en advies

De gerelateerde producten in de rubrieken Radar Plotter en Stuurautomaat en Instrumenten zijn voor u mogelijk ook interessant.

Contact

Heeft u een vraag. Neem contact met ons op per Email voor tips en advies over de Raymarine ST40 Bidata .

Specificaties

ST40 Bidata Display for use as a repeater for ST40 systems or other SeaTalk systems

Compact in size and design, yet big on performance and features, ST40 Bidata gives you all the information power of the individual ST40 Speed and ST40 Depth units, simultaneously displayed via bold 7-segment 27mm and 17mm digits displays. ST40 Bidata makes an ideal repeater for a chart table or second steering station displaying data from any SeaTalk Speed/Log and Depth unit as well as from a master Bidata unit.

ST40 Bidata provides independently selectable speed and distance units, shallow alarms and resettable minimum ?depth memory, deep and shallow anchor alarms and water temperature information. As with all ST40 displays, ST40 Bidata has extra large digits and razor sharp LCD displays for outstanding visibility in all light conditions. Fully compatible with SeaTalk, ST40 Bidata offers a choice of snap-on bezels in three different finishes for surface and bracket mounting option

ST40 Features

Seven segment digits (1.1" digital and 0.7" analog)
Surface and bracket mount options
SeaTalk integration for sharing and repeating navigation data
Optional clip-on bezels
Three levels of backlighting
Self-sealing speed transducer for easy cleaning and maintenance
Backlit push button controls
Waterproof to CFR-46 standard
Operating voltage 7.5V to 16.5V
Low operating current (40mA)
Compatible as repeaters with ST30, ST50, ST50 Plus, ST60, ST80, Raydata and the L760 Plus, L755 Plus and L1250 Fishfinders

Specifications

Boss diameter 55 mm (2.20 inches).
Deep anchor alarm 10 to 400 feet.
Deep depth alarm 30 to 400 feet.
Depth range 0 to 400 feet.
Log range 0 to 99999.
Operating temperature: 0°C to +70°C.
Overall dimensions 126 mm x 70 mm x 38 mm (5.00 inches x 2.80 inches x 1.55 inches).
Power Consumption 35 mA typical. 70 mA with maximum backlighting.
Shallow anchor alarm 1 to 250 feet.
Shallow depth alarm 0 to 29 feet.
Speed range: 0 to 99.9 knots.
Temperature reading range -10°C to +40°C.
Trip reading range 0 to 999 nautical miles.
