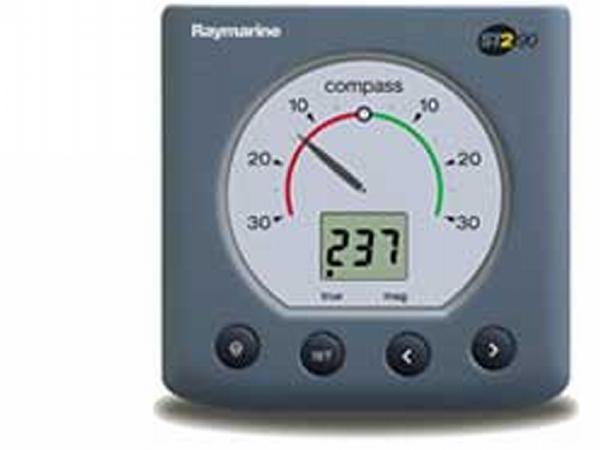

Raymarine ST290 kompasweergave

Raymarine ST290 kompasweergave. Adviesprijs €520,-

BTW (21%)
Product uit assortiment

Raymarine ST290 kompasweergave
In de rubriek Raymarine vindt u de producten en prijzen van Raymarine. Een selectie Raymarine producten die u kunt kopen zoals een radar, kaartplotter, stuurautomaat, marifoon, navigatie apparatuur, seatalk, nmea 2000, transducer. Volledige fabrieksgarantie op de Raymarine producten. Verzenden of afhalen is mogelijk.

Tips en advies

De gerelateerde producten in de rubrieken Radar Plotter en Stuurautomaat en Instrumenten zijn voor u mogelijk ook interessant.

Contact

Heeft u een vraag. Neem contact met ons op per Email voor tips en advies over de Raymarine ST290 kompasweergave.

Specificaties

Easy to read analog compass heading display with digital LCD

The ST290 Compass instrument consist of an analog dial and integral digital display, which provide:

Compass heading indication.
Steering indication
Course over ground (COG) information, if GPS or similar positioning data is available on the system.

Features

Analog dial with LCD window
Remote keypad control option
Low power indicator
Adjustable display response time
Average Heading display

Specifications

Absolute voltage range (volts DC) 10 - 16 volts
Approvals EMC (Europe and FCC) and CE mark
Control type(s) 4 backlit buttons
Display lighting 3 levels plus off
Display size and type 34mm segmented LCD
Humidity up to 95%
Maximum character size 13mm
Mounting methods flush/surface
NMEA 2000 via DPU
NMEA input (0183) via DPU
NMEA output (0183) via DPU
Nominal voltage (volts DC) 12v systems
Non operating temperature range -10°C to +70°C
Operating temperature range -10°C to +70°C
Overall dimensions (WxHxD) 4.9x4.9x1.5 inches (124x124x34mm)
PC (RS232) RayTech Interface via optional E85001 Interface box Power consumption (typical) mA 65mA (illumination off)
SeaTalk 2 ports
SeaTalk2 via DPU
Waterproofing standard CFR46

Compass Data

COG display via GPS input
Heading display current/lock/average
Heading offset true/magnetic variation
Locked compass heading option Yes
