Raymarine SPX - Can Corepack

Raymarine SPX - Can Corepack

BTW (21%)
Product uit assortiment

Raymarine SPX - Can Corepack
In de rubriek Raymarine vindt u de producten en prijzen van Raymarine. Een selectie Raymarine producten die u kunt kopen zoals een radar, kaartplotter, stuurautomaat, marifoon, navigatie apparatuur, seatalk, nmea 2000, transducer. Volledige fabrieksgarantie op de Raymarine producten. Verzenden of afhalen is mogelijk.

Tips en advies

De gerelateerde producten in de rubrieken Radar Plotter en Stuurautomaat en Instrumenten zijn voor u mogelijk ook interessant.

Contact

Heeft u een vraag. Neem contact met ons op per Email voor tips en advies over de Raymarine SPX - Can Corepack.

Specificaties

SPX-CAN

Engineered specifically for vessels with the Volvo Penta CAN propulsion system, the SPX-CAN corepack is the “brains” of your Raymarine modular pilot system.

Engineered specifically for vessels with the Volvo Penta IPS propulsion system, the SPX-CAN corepack is the “brains” of your Raymarine modular pilot system. Utilising its built-in IPS gateway, the SPX-CAN corepack interacts seamlessly with the IPS propulsion system and brings you fully integrated autopilot control.

The SPX-CAN corepack features an integrated rate-gyro processor as standard equipment. The rate gyro, combined with Raymarine’s exclusive AST (Advanced Steering Technology) software algorithms ensure razor-sharp course keeping under any sea conditions. With data connections for SeaTalk, SeaTalkng, NMEA 0183 and NMEA 2000 the SPX-CAN corepack has unprecedented connectivity for talking to other onboard systems.

Using SeaTalkng networking, connect your SPX-CAN to the ST70 Colour Autopilot Controller and unlock exclusive features including programmable fishing patterns. SPX-CAN/ST70 allows you the freedom to work the bait while it smoothly handles the boat. Programmable patterns include circles, spirals, cloverleaf, figure 8, lazy-S, zigzag, box, box pattern search, and 180 or 360 degree turns.

Features

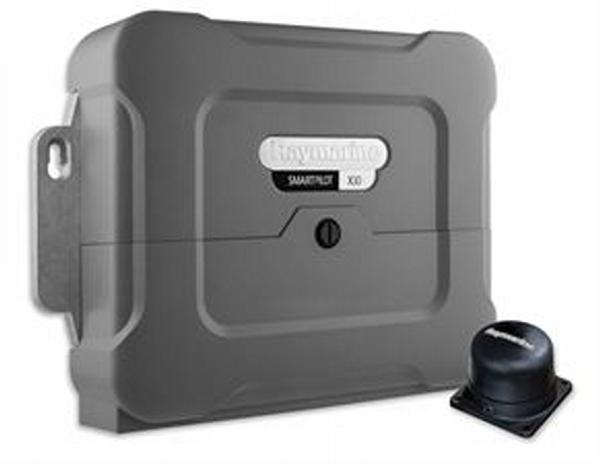

  • Corepack includes course computer and fluxgate compass sensor.
  • Compatible with CAN systems & water jets.
  • Programmable fishing patterns via ST70 autopilot head. Patterns include: circles, spirals, cloverleaf, figure 8, lazy-S, zigzag, box, box pattern search, and 180 or 360 degree turns.
  • Built-in rate gyro provides the best possible performance.
  • Advanced steering technology (AST) which intelligently monitors the yaw of the vessel and actually anticipates course changes as well as ensuring razor-sharp course keeping.
  • AutoLearn function automatically understands the vessel's steering characteristics, simplifying calibration and allowing the vessel to constantly adapt to changing sea conditions.

    Connections

  • Inputs: Fluxgate compass, NMEA 0183 v2.3, SeaTalk, SeaTalkng, power, sleep switch
  • Outputs: NMEA 0183 v2.3, SeaTalk, SeaTalkng, CAN (IPS)
  • Steering drive compatibility: Volvo Penta IPS system
  • SeaTalk output: 3A at 12V (fuse protected at 3A)
  • SeaTalkng output: 3A at 12V (fuse protected at 3A)
  • NMEA 0183 v2.3 inputs/outputs: See relevant installation guide for received/transmitted NMEA 0183
  • NMEA fast heading output: HDG 10 Hz 0.1° resolution
  • Fuses: Standard automotive blade fuses
  • Power Terminals: 10A
  • SeaTalk Terminals: 3A

    Environmental

  • Operating temperature: -10°C to 55°C (14°F to 131°F)
  • Non-operating temperature: -20°C to 70°C (-4°F to 158°F)
  • Relative humidity limit: 80%
  • Water protection: drip resistant when mounted vertically

    General

  • Gyro: internal GyroPlus fitted onto circuit board as standard
  • Dimensions (W x H x D): 12.1" (307mm), 7.7" (195mm), 2.8" (70mm)
  • Weight: 2.2kg (4.85lbs)

    Power

  • Nominal supply voltage: 12 or 24 V DC (fuse protected at 10A)
  • Operating voltage range: 10 V to 32 V DC
  • Power consumption (standby): 300mA

    Storage conditions when packed

  • Temperature range: -5°C to 50°C (23°F to 122°F)
  • Relative humidity limit: 75%
