Engineered for both power and sail vessels with 12 or 24 Volt DC electrical systems, the SPX-10 corepack is the “brains” of your Raymarine modular pilot system. Engineered for the demanding marine environment the SPX-10 course computer can drive any Raymarine Type 1 hydraulic, linear, or rotary drive system.
The SPX-10 corepack features an integrated rate-gyro processor as standard equipment. The rate gyro, combined with Raymarine’s exclusive AST (Advanced Steering Technology) software algorithms ensure razor-sharp course keeping under any sea conditions. The SPX-10 also offers the convenience of rudder reference-less operation as well as data connections for SeaTalk, SeaTalkng, NMEA 0183 and NMEA 2000 giving the SPX-10 unprecedented connectivity.
Using SeaTalkng networking, connect your SPX-10 to the ST70 Colour Autopilot Controller and unlock exclusive features including programmable fishing patterns. SPX-10/ST70 combination allows you the freedom to work the bait while it smoothly handles the boat. Programmable patterns include circles, spirals, cloverleaf, figure 8, lazy-S, zigzag, box, box pattern search, and 180 or 360 degree turns.

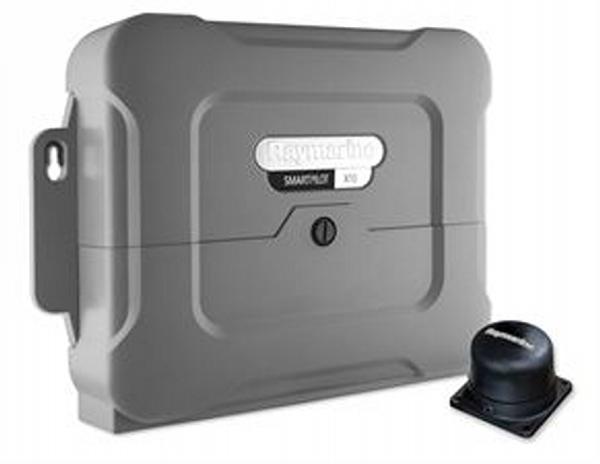

The SPX-10 corepack includes course computer and fluxgate compass sensor. To complete your autopilot system you will need to add a Raymarine Type 1 autopilot drive and a compatible SeaTalk or SeaTalkng autopilot controller.
Features
Corepack includes course computer and fluxgate compass sensor.
Compatible with all type 1 drives/pumps (excluding CR pumps).
Programmable fishing patterns via ST70 autopilot head. Patterns include: circles, spirals, cloverleaf, figure 8, lazy-S, zigzag, box, box pattern search, and 180 or 360 degree turns.
Built-in rate gyro provides the best possible performance.
Advanced steering technology (AST) which intelligently monitors the yaw of the vessel and actually anticipates course changes as well as ensuring razor-sharp course keeping.
AutoLearn function automatically understands the vessel's steering characteristics, simplifying calibration and allowing the vessel to constantly adapt to changing sea conditions.
Connections
Inputs: Fluxgate compass, NMEA 0183 v2.3, SeaTalk, SeaTalkng, power, sleep switch and rudder position sensor
Outputs: NMEA 0183 v2.3, SeaTalk, SeaTalkng, drive motor, drive clutch
Steering drive compatibility: All Type 1 drives/pumps (excluding CR pumps) (drive voltage must match boat’s supply voltage)
Drive motor output: continuous 10A at supply voltage
Drive clutch output: 1.2A at 12/24V selectable
SeaTalk output: 2A at 12V (fuse protected at 2A)
SeaTalkng output: 2A at 12V (fuse protected at 2A)
NMEA 0183 v2.3 inputs/outputs: See relevant installation guide for received/transmitted NMEA 0183
NMEA fast heading output: HDG 10 Hz 0.1° resolution
Fuses: Standard automotive blade fuses
Power Terminals: 15A
SeaTalk Terminals: 2A
Environmental
Operating temperature: -10°C to 55°C (14°F to 131°F)
Non-operating temperature: -20°C to 70°C (-4°F to 158°F)
Relative humidity limit: 80%
Water protection: drip resistant when mounted vertically
General
Gyro: internal GyroPlus fitted onto circuit board as standard
Dimensions (W x H x D): 12.1" (307mm), 7.7" (195mm), 2.8" (70mm)
Weight: 2.2kg (4.85lbs)
Power
Nominal supply voltage: 12 or 24 V DC (fuse protected at 15A)
Operating voltage range: 10 V to 32 V DC
Power consumption (standby): 300mA
Storage conditions when packed
Temperature range: -5°C to 50°C (23°F to 122°F)
Relative humidity limit: 75%
|
