Art.Nr.:

Raymarine Ra1048Shd G Serie 4Ft 4Kw Super HD Digital Open Arra

Raymarine Ra1048Shd G Serie 4Ft 4Kw Super HD Digital Open Arra

Product uit assortiment

Raymarine Ra1048Shd G Serie 4Ft 4Kw Super HD Digital Open Arra
In de rubriek Raymarine vindt u de producten en prijzen van Raymarine. Een selectie Raymarine producten die u kunt kopen zoals een radar, kaartplotter, stuurautomaat, marifoon, navigatie apparatuur, seatalk, nmea 2000, transducer. Volledige fabrieksgarantie op de Raymarine producten. Verzenden of afhalen is mogelijk.

Tips en advies

De gerelateerde producten in de rubrieken Radar Plotter en Stuurautomaat en Instrumenten zijn voor u mogelijk ook interessant.

Contact

Heeft u een vraag. Neem contact met ons op per Email voor tips en advies over de Raymarine Ra1048Shd G Serie 4Ft 4Kw Super HD Digital Open Arra.

Specificaties

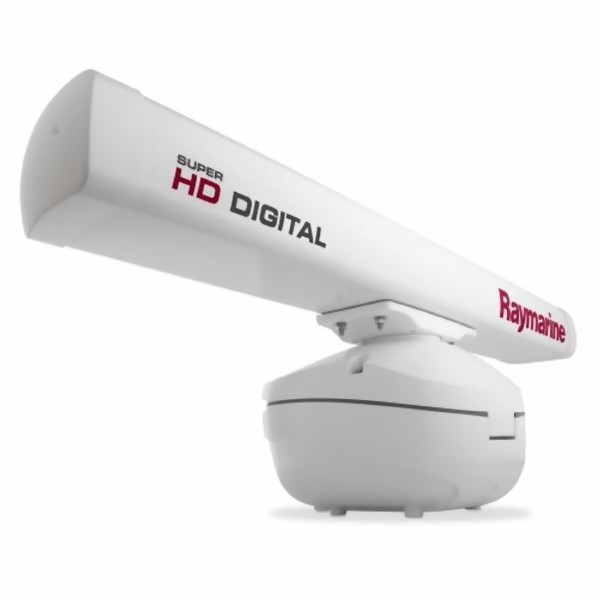

The Raymarine RA1048SHD open array with Super HD Digital technology is more than just the next step in radar evolution, it a giant leap into the future of marine radar technology.

Combining Raymarine’s 48” open array antenna and 4kW Super HD Digital radar pedestal, the RA1048SHD is the perfect choice for mid to large sized sportfishing powerboats, cruising yachts and large sail vessels demanding the absolute best in radar performance and technology.

Raymarine’s exclusive Super HD Digital technology brings the power and performance of digital signal processing to marine radar.  Utilising high-speed data processing the Raymarine’s exclusive Super HD Digital algorithms, the results are amazingly clear radar images with unmatched target separation and a lifelike presentation that virtually eliminates noise, clutter and false echoes.  Super HD Digital processing delivers a radar image that can’t be matched by similar analog or digital radar systems, and brings you a level of performance that rivals that of systems of more than twice the physical size and power output.

The RA1048SHD open array comes with a 4kW Super HD Digital antenna pedestal, a 48” open array antenna, the VCM100 voltage converter, 15-meter digital interconnect cable, mounting hardware, template and instructions.  SeaTalkhs network compatible for Raymarine C Series Widescreen, E Series and G Series navigation systems.

Features:

  • Exclusive Raymarine HD Digital radar technology
  • Super HD Digital Technology delivers twice the performance of conventional radar systems
  • Dramatically improves small target detection by virtually eliminating all noise
  • Super HD Digital reduces the effective horizontal beam width delivering the target resolution of a much larger radar array
  • Adaptive digital receiver automatically adjusts to changing environmental and sea conditions for a dramatically clearer picture
  • Fast digital receiver processor
  • Delivers 256 colour target levels
  • Dual range capable
  • Thin interconnect cable
  • Supplied with remotely mounted VCM100 voltage converter module
  • 12 or 24 volt operation

Specifications:

  • Operating temperature range: -10°C to +55°C D6
  • Non-operating temperature range: -20°C to +70°C C6
  • Waterproofing standard: IPX6
  • Scanner power and type: 4kW Super HD Digital
  • Antenna Size: 4' (48")
  • Scanner cable length: 15m standard (5m, 10m & 25m option)
  • Pedestal Weight: 56.4 lbs (29.5kg)
  • Voltage: 10.7 -32 volts range for 12V, 24V systems
  • Power consumption (typical) watts: 46W, Standby 9.2W
  • Effective horizontal beam width with Super HD Digital: <1° (following processing on horizontal beam width of 1.75°)
  • Max range scale: 72nm
  • Pulse length/PRF Settings: 8
  • Beam width vertical -3dB: 25°
  • Antenna side lobes (inside 10°): <-21dB
  • Antenna side lobes (outside 10°): <-30dB
  • Rotation rate: 24rpm
  • Receiver bandwidth: Matched digital filter for each pulse length
  • Number of displayed video levels: 256 (8-bit)
