Specificaties
P70
Raymarine's new p70 Autopilot Controller keeps you in command of your SmartPilot autopilot system no matter whether you are cruising, fishing or sailing! Built on Raymarine's new ultra-sleek platform, the p70 autopilot controller offer boaters an attractive, high-visibility, and simple to operate interface to their Raymarine SmartPilot X-Series autopilot systems.
The p70 offers pushbutton controls and support for multiple autopilot modes including Auto, standby, trolling patterns, and track mode from your GPS or chartplotter. p70 features standard SeaTalkng connectivity for simple interfacing with Raymarine SmartPilot X-Series autopilot corepacks.
The p70 features a 3.5 sunlight viewable Liquid Crystal Display. LED backlighting delivers superior visibility day or night and ultra-low power consumption. p70 also supports group dimming along with i70 Instruments and e7 multifunction displays. p70's LightHouse user interface delivers simple setup, calibration and operation. The intuitive layout makes accessing all of the p70's features easy.
p70 matches perfectly with i70 instruments and the new e7 series multifunction displays. p70 is designed with a clean, modern look that looks great on today's luxury sail and power vessels.
X-10 Corepack
Engineered for both power and sail vessels with 12 or 24 Volt DC electrical
systems, the SmartPilot X-10 corepack is the brains of your Raymarine
modular pilot system. Engineered for the demanding marine environment the
SmartPilot X-10 course computer can drive any Raymarine Type 1 hydraulic,
linear, or rotary drive system.
The SmartPilot X-10 corepack features an integrated rate-gyro processor as
standard equipment. The rate gyro, combined with Raymarine's exclusive AST
(Advanced Steering Technology) software algorithms ensure razor-sharp course
keeping under any sea conditions. The SmartPilot X-10 also offers the
convenience of rudder reference-less operation as well as data connections
for SeaTalk, SeaTalkNG, NMEA 0183 and NMEA 2000 giving the SmartPilot X-10
unprecedented connectivity.
The SmartPilot X-10 core pack includes course computer and fluxgate compass
sensor.
Type 1 Linear Drive
Designed for boats with existing mechanical steering systems. The mechanical linear drive provides powerful thrust, fast hardover times and quiet operation.
- Low backdrive force, to minimize the drive's effect on the boat's steering when the autopilot is in standby.
- A powerful electric motor controlled by an electromagnetic fail-safe clutch, using a high tensile belt drive and epicyclic gearbox>
- High performance for minimum current consumption

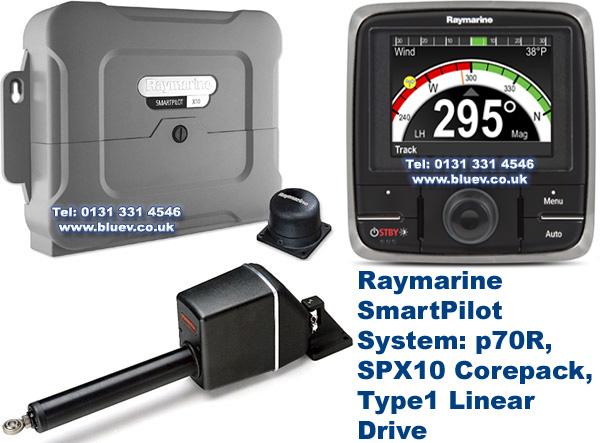

In the Box:
- E22166 P70 Autopilot Control Head
- E12198 X-10 Corepack
- M81130 Type 1 Linear Drive 12v
- T16012 Autopilot Backbone kit
|
|
