| Dimensions
|
226 x 142 x 150mm max to cable bend radius (W x H x D)
| Cartography
|
Worldwide base map for non cartography variants
Navionics Ready to Navigate in all other variants (upgradable to Navionics Gold/ Platinum)
| Nominal voltage
|
13.8 V DC
| Voltage range
|
10.2 - 15.6 V DC
| Power at maximum brightness
|
13.2 Watts
| Power in standby mode
|
less than 100mW (at 10 V)
|
Display
|
7" landscape (800 x 480 pixels) with LED backlighting
| Display viewing angles
|
+/- 70º horizontal and +/- 50º vertical
| Weight
|

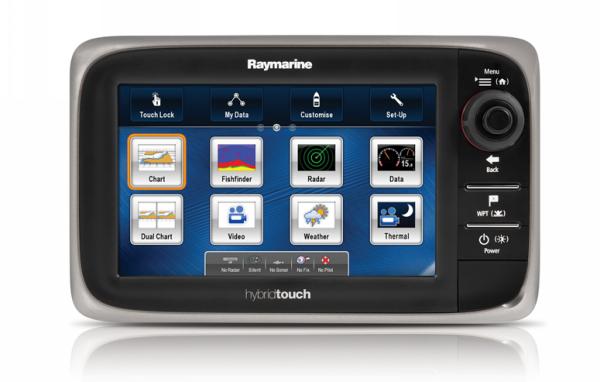

Raymarine e7 2.385 kg (5.26 lbs) Raymarine e7D 2.423 kg (5.34 lbs)
| Networking
|
Up to 6 e7 displays or sensors using a network switch
| Mounting options
| Surface mount as standard or trunnion mount using optional bracket assembly
| GPS
|
48 channels
1 second hot start
35 seconds upwards cold start
| Languages
|
UK English, US English, French, German, Danish, Dutch, Spanish, Italian, Norwegian, Finnish, Turkish, Swedish, Portuguese, Russian, Chinese, Japanese, Korean, Croatian, Greek and Polish.
| Operation temperature range
|
-25º to 55ºC
(13º to 131ºF)
| Connectivity
|
WiFi 802.11 b/g
Bluetooth 2.1 + EDR power class 1.5
Video input (PAL/NTSC/SECAM)
SeaTalkNG / NMEA 2000
NMEA 0183 input (x2) NMEA output (4800/9600/38,400 baud)
Sonar transducer port (e7D only)
Ethernet 10/100 Mbits/s
|
