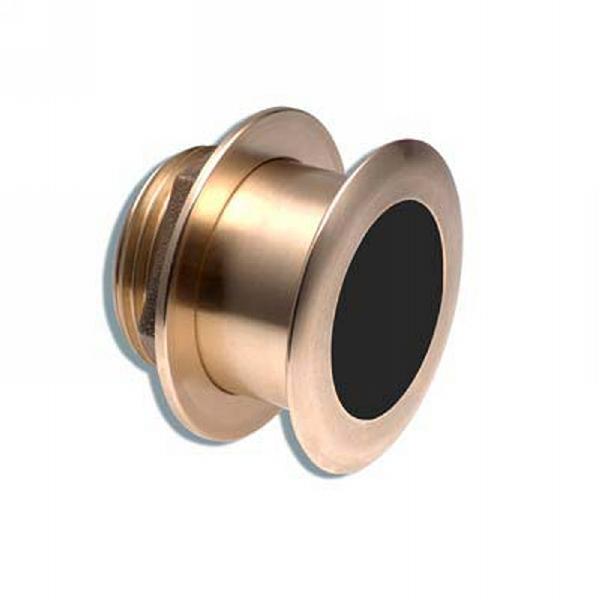

Raymarine DSM400 B164 - 12 Lp Transducer
Raymarine DSM400 B164 - 12 Lp Transducer
Raymarine DSM400 B164 - 12 Lp Transducer
Raymarine DSM400 B164 - 12 Lp Transducer |
In de rubriek Raymarine vindt u de producten en prijzen van Raymarine. Een selectie Raymarine producten die u kunt kopen zoals een radar, kaartplotter, stuurautomaat, marifoon, navigatie apparatuur, seatalk, nmea 2000, transducer. Volledige fabrieksgarantie op de Raymarine producten. Verzenden of afhalen is mogelijk. |
Tips en adviesDe gerelateerde producten in de rubrieken Radar Plotter en Stuurautomaat en Instrumenten zijn voor u mogelijk ook interessant. |
ContactHeeft u een vraag. Neem contact met ons op per Email voor tips en advies over de Raymarine DSM400 B164 - 12 Lp Transducer. |
SpecificatiesB164 12 degree low profile transducer Tilted Element transducers are mounted through a hole drilled in the bottom of the boat and protrude directly into the water. Tilted Element transducers offer performance similar to through-hulls. Tilted Element transducers are mounted flush against the hull. Unlike traditional Through-Hull transducers, Tilted Elements do not need a fairing block. The element inside the transducer acts as a leveling agent, working with the deadrise (angle) of your hull to ensure the transducer's beam is directed straight down. These transducers will generally come in two configurations based on your hull type, a 12º and 20º version. Select a 12º tilt when the deadrise of your hull falls in the 8º to 15º range. Select the 20º tilt if your hull's deadrise is in the 16º to 24º range. When installing a Tilted Element transducer make sure to position it in front of the propeller, rudder, keel or anything else that may create turbulence. They also must be mounted in a position that is always underwater and angled within the appropriate deadrise range. |
