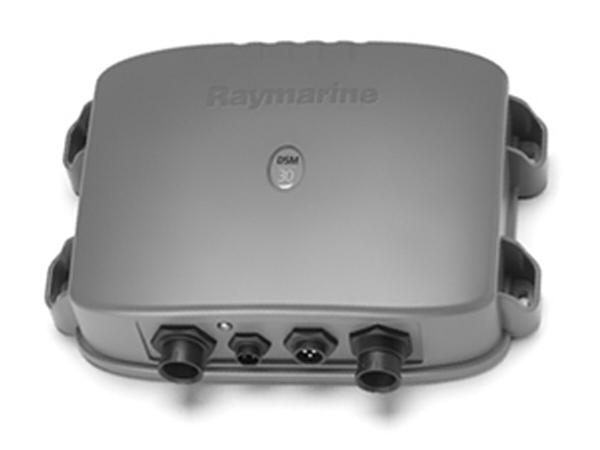

Raymarine DSM30 Diepte Module 600W

Raymarine DSM30 Diepte Module 600W

BTW (21%)
Product uit assortiment

Raymarine DSM30 Diepte Module 600W
In de rubriek Raymarine vindt u de producten en prijzen van Raymarine. Een selectie Raymarine producten die u kunt kopen zoals een radar, kaartplotter, stuurautomaat, marifoon, navigatie apparatuur, seatalk, nmea 2000, transducer. Volledige fabrieksgarantie op de Raymarine producten. Verzenden of afhalen is mogelijk.

Tips en advies

De gerelateerde producten in de rubrieken Radar Plotter en Stuurautomaat en Instrumenten zijn voor u mogelijk ook interessant.

Contact

Heeft u een vraag. Neem contact met ons op per Email voor tips en advies over de Raymarine DSM30 Diepte Module 600W.

Specificaties

600 Watt "Black Box" Digital Sounder Module with HD Digital Technology. For 12V DC Systems Only.

DSM30 HD Digital Sounder Module

  • Digital Sounder Module adds HD Digital technology to Raymarine E-Series and C-Series multifunction displays
  • 600 Watt operation
  • Dual frequency 50/200 kHz
  • Patented Raymarine HD Digital sounder technology

    Integration Capabilities

    • E-Series SeaTalk hs network integration (optional SeaTalk hs crossover coupler or SeaTalk hs Network Switch is required)
    • C-Series integration
    • hsb2 networking compatible with "Plus" series radars, chartplotters and fishfinders

    The DSM30 is designed for 12V DC electrical systems only. For 24V DC systems, please use the DSM300.

    Echo Sounder Features

    • Dual frequency operation (200/50 kHz)
    • 600 watt available output power
    • HD Digital Auto Adaptive Gain control (no adjustment required)
    • Patent Pending Digitally Adaptive Transmitter Receiver with infinite receiver bandwidth settings and digital filter
    • A-Scope (Real-Time Display): Split second real time representation of fish and bottom features passing through the beam of your transducer right now, the history of your A-Scope is represented in the standard sounder image scrolling across your screen.
    • Zoom Display: Auto or manual zoom magnification of any part of the 200 or 50 kHz fishfinder screen image, (X 2, X4 or X6 magnification).
    • Bottom Lock: The bottom lock feature, shows the bottom as a straight line, in order to help you detect fish close to the bottom and remove wave action from the fishfinder image.
    • White Line: The White line feature helps distinguish between fish and the bottom, when fish are swimming close to the bottom.
