Specificaties
CLEARPULSE SONAR IMAGING… SEE THE DIFFERENCE
Raymarine Digital Sonar Modules bring the benefits of Raymarine’s award winning ClearPulse sonar technology to the Raymarine multifunction displays and software.
- ClearPulse technology eliminates surface clutter and water column noise, revealing more fish.
- ClearPulse processing delivers the most life-like bottom structure
presentation without the need for manual tuning or adjustments.
The operation is truly "hands-off."
- Raymarine's ClearPulse processing marks individual bait fish and
game fish, even when tightly packed together, or stacked vertically
- ClearPulse visually separates bottom dwelling fish from the ocean
bed/floor.
Sonar features
- Raymarine’s patented ClearPulse sonar technology via a remotely mounted Digital Sonar Module.
- Hands-free ClearPulse technology automatically adjusts more than 220 sonar parameters per second and virtually eliminates clutter.
- ClearPulse adaptive receiver technology precisely targets fish and
bottom structure with amazing clarity.
- Bottom lock, A-Scope and Zoom modes.
- Auto adaptive control of sensitivity, ping rate and transmit power.
- Four sonar presets for one touch access to your favourite views of split screen, frequency, zoom, bottom lock and more.
- Bottom structure and target detail are delivered in native resolutions up to 1280 x 1024 pixels.
- Automatic “hands off” operation for a dramatically clearer picture.
- Full range of high and ultra high performance transducers available.
52

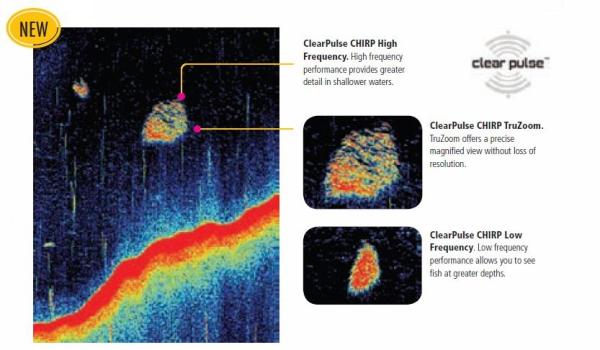

ClearPulse CHIRP Technology
Conventional sonar modules transmit and listen to at a single frequency with each pulse. CHIRP transmissions allow more sonar power to penetrate the water – in fact x10 more power when compared to conventional sonar modules. ClearPulse CHIRP technology takes advantage of a wide spectrum of sonar signals to deliver amazing detail and accuracy.
ClearPulse CHIRP Features
- Patented ClearPulse digital sonar technology.
- Sharper, well defined echoes.
- Cleaner, noise-free display with enhanced inter-ping processing and comparison data.
- Better shallow water, bottom tracking and thermocline recognition thanks to improved signal to noise ratios, reverb and interference rejection.
- Surpasses conventional sonar with accurate performance from 2 to 10,000ft (dependent on transducer used).
CP450C Chirp Broadband Sonar
The CP450C with ClearPulse CHIRP technology goes beyond high definition and offers increased resolution and deeper depths
- TruZoom™ mode for a precise magnified view of fish targets, bottom structure and baitfish without any loss of resolution seen with traditional sonar.
- High-speed scrolling (Fast Ping Rate) with 60 pulses a second and enhanced shallow water and high-speed operation.
- Power supply monitoring – useful when drifting and you have no battery charge.
- SeaTalkhs Ethernet network port – new waterproof Raynet connector.
- Network compatible with e7 and future Raymarine network multifunction displays.
- Dual CHIRP transceivers – 2 independently adjustable channels (two sonars in one). Each channel can be customised to specific frequency bands along with independent manual and auto adjustment settings.
- Low, medium and high frequencies for excellent performance at all depths – supports CHIRP transmissions from 25 to 250kHz with exclusive mid-band frequency support in the 75 to 130 kHz range as well.
|
