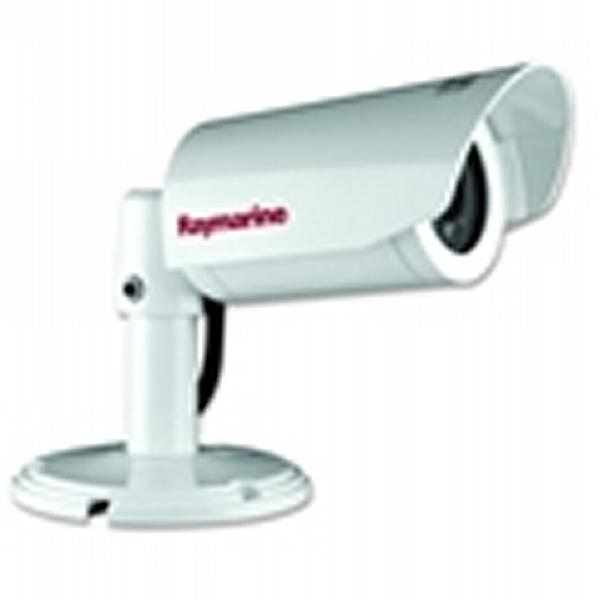

Raymarine Cam 100 Ntsc CCTV camera met IR

Raymarine Cam 100 Ntsc CCTV camera met IR

BTW (21%)
Product uit assortiment

Raymarine Cam 100 Ntsc CCTV camera met IR
In de rubriek Raymarine vindt u de producten en prijzen van Raymarine. Een selectie Raymarine producten die u kunt kopen zoals een radar, kaartplotter, stuurautomaat, marifoon, navigatie apparatuur, seatalk, nmea 2000, transducer. Volledige fabrieksgarantie op de Raymarine producten. Verzenden of afhalen is mogelijk.

Tips en advies

De gerelateerde producten in de rubrieken Radar Plotter en Stuurautomaat en Instrumenten zijn voor u mogelijk ook interessant.

Contact

Heeft u een vraag. Neem contact met ons op per Email voor tips en advies over de Raymarine Cam 100 Ntsc CCTV camera met IR.

Specificaties

Raymarine CAM 100 NTSC CCTV Camera With IR

Day/Night Marine camera. NTSC version for North America.

The Raymarine CAM100 Day and Night Marine camera instantly transforms Raymarine E Series into a powerful onboard video observation system. Improve docking safety by monitoring blind spots or keep track of the engine room and crew from the helm. From the fly bridge to saloon, monitor any on board activity, or use multiple cameras for a total view of your vessel and surroundings. Using a highly sensitive IR sensor the camera automatically switches from true color to black and white night vision mode at night.

  • Transforms Raymarine E Series displays into an onboard video observation system
  • Automatic switching between true colour (day) and black & white (night)
  • Clear focus at night with Anti-IR focus distortion technology built-in
  • Ideal for monitoring:
    • Blind spots
    • Decks
    • Engine room
    • Cabins

Specifications:

  • Imager: 1/3” Sony Super HAD CCD (Super Hi Resolution)
  • LED spectrum: 30 degrees for 15m
  • Infra red: 14 IR LEDs
  • Connector Type: Male BNC
  • Video output: Composite 75 Ohms
  • Minimum Resolution: 0.1Lux at F2.0 (no IR), 0 Lux (with IR)
  • Focal Length: 4.3mm
  • Horizontal Resolution: 550TVL
  • Waterproofing: IPX6 and CFR46
  • Temperature Range: -15ēC to +55ēC (operating) -25ēC to +70ēC (non-operating)
  • Power Consumption: 130mA Day use, 280mA Night IR at 12V DC
  • Operating Voltage: 12 Volts DC (+30% to -10%)
  • Weight: .63lbs (.28kg)
  • Dimensions (L xH): 5.85" x4.1"
  • Viewing Angle: 63ē horizontal, 47ē vertical, 78ē diagonal
  • Format: PAL 752 x 582 pixels NTSC 768 x 494 pixels
  •
