Raymarine I50 Snelheid (Digital ) Weergave

Raymarine I50 Snelheid (Digital ) Weergave

BTW (21%)
Product uit assortiment

Alleen Raymarine I50 Snelheid (Digital ) Weergave
In de rubriek Raymarine vindt u de producten en prijzen van Raymarine. Een selectie Raymarine producten die u kunt kopen zoals een radar, kaartplotter, stuurautomaat, marifoon, navigatie apparatuur, seatalk, nmea 2000, transducer. Volledige fabrieksgarantie op de Raymarine producten. Verzenden of afhalen is mogelijk.

Tips en advies

De gerelateerde producten in de rubrieken Radar Plotter en Stuurautomaat en Instrumenten zijn voor u mogelijk ook interessant.

Contact

Heeft u een vraag. Neem contact met ons op per Email voor tips en advies over de Alleen Raymarine I50 Snelheid (Digital ) Weergave.

Specificaties

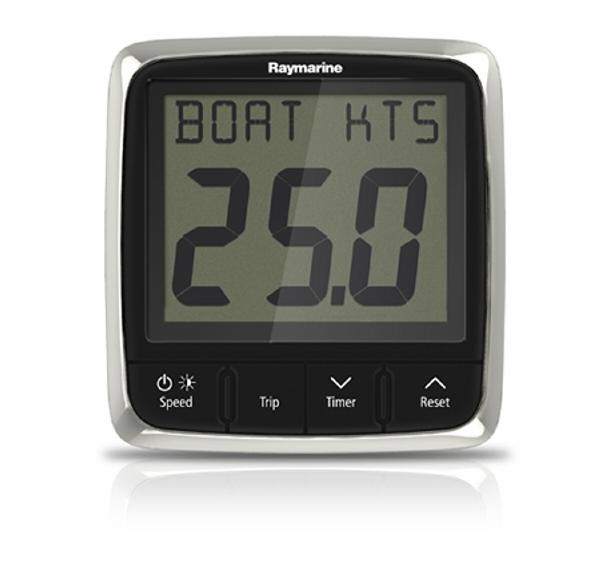

RAYMARINE I50 SPEED (DIGITAL) DISPLAY ONLY

Dedicated Speed, Depth and Tridata for power and sail applications!

The new i50 instruments are designed to complement the all new Raymarine cSeries and eSeries multifunction displays. These stylish, dedicated-function instruments are the perfect solution for smaller power boats, yachts and rigit inflatables.

Excellent viewing angles for both day and night conditions and simple, push-button controls make the i50 instruments extremely easy to see and use. They are also simple to install thanks to the front-mount design.

Key Features

  • Large numerals and digits
  • Red backlighting for improved visibility
  • SeaTalk and SeaTalkng interfaces
  • NMEA2000 (compatible) interface
  • Built-in transducer interface
  • 110mm x 115mm footprint identical to older Raymarine ST60+ instrumentation
  • Large controls for ease of use at sea
  • Low power consumption
  • Multiple data source support eliminates potential data conflicts
  • Front mounted design for simple installation
Nominal Voltage 12V DC

Operating Voltage

Range

10 - 16V DC
Power Consumption
typically <1W (display only) and 2.4W maximum with transducer connected
Current Consumption
45 to 65mA (display only) and 200mA maximum with transducer connected
Operating Temperature range
-20ēC to +55ēC

Storage Temperature

-30ēC to +70ēC
Relative Humidity
up to 93%

Waterproofing standard

IPX6 Connections

2 x SeaTalkng and transducers

Conformance

Europe 2004/108/EC
