Nasa Clipper Battery Monitor ( 12V )
Nasa Clipper Battery Monitor ( 12V )
BTW (21%)
Product uit assortiment
| Nasa Clipper Battery Monitor ( 12V ) |
 |
| In de rubriek Nasa vindt u de producten en prijzen van Nasa. Een selectie Nasa producten die u kunt kopen zoals een windmeter, snelheidsmeter, dieptemeter, accu monitor, navtex, gas sensor, man overboord systeem, navigatie instrument, instrumenten, clipper, target, kompas, transducer, log, navigatie verlichting. Volledige fabrieksgarantie op de Nasa producten. Verzenden of afhalen is mogelijk. |
Tips en adviesDe gerelateerde producten in de rubrieken Instrumenten en Instrument Toebehoren en AIS zijn voor u mogelijk ook interessant. |
ContactHeeft u een vraag. Neem contact met ons op per Email voor tips en advies over de Nasa Clipper Battery Monitor ( 12V ). |
Specificaties

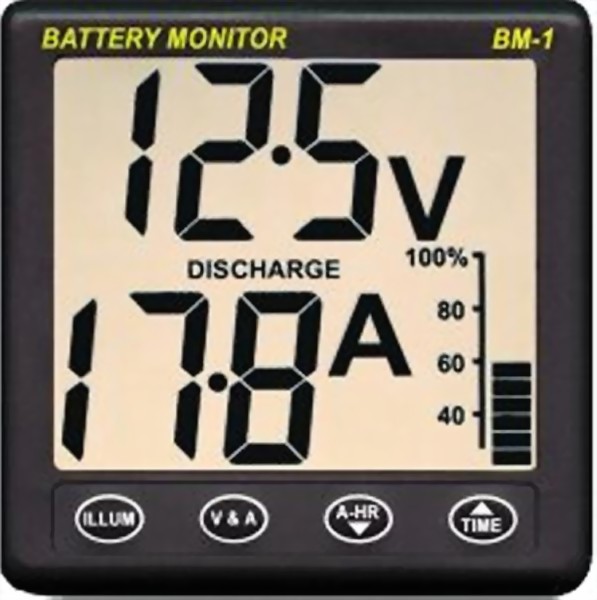

The BM-1 is designed to monitor performance of 12 volt lead acid battery systems with capacities of up to 999 amp hours. It is supplied complete with a precision 100 AMP shunt and a prefabricated cable assembly to enable simple DIY installation.  The unit continuously monitors voltage, current (charge or discharge), number of amp/hours (charge or discharge), the batteries state of charge and the time to charge or discharge. This information leads to more efficient use of the battery, which can enhance battery life and reduce the risk of failure. Specifications: Supply voltage 8 - 16 Volts DC Supply current 3 milliamps Battery capacities 5 - 650 AMP Hour Load current 100 AMPS Maximum Charge current 100 AMPS Maximum Shunt Standard 50 millivolt @ 100 AMP Cables supplied:  100 AMP shunt link to M8 Ring terminal. 5 Metre from display unit to battery - fused and fitted with ring terminals for shunt, fuse holder and M8 ring terminal to battery. Display unit Standard 110mm square Clipper case. High contrast LCD, backlit for night viewing. Minimum voltage visual alarm Simple operation - 4 keys to select backlight, Volt/Amp/State of Charge screen, AMP hours or Time to run. |
