Nasa Battery Monitor - Compact - Wit ( 24Vdc )

Nasa Battery Monitor - Compact - Wit ( 24Vdc )

BTW (21%)
Product uit assortiment

Nasa Battery Monitor - Compact - Wit ( 24Vdc )
In de rubriek Nasa vindt u de producten en prijzen van Nasa. Een selectie Nasa producten die u kunt kopen zoals een windmeter, snelheidsmeter, dieptemeter, accu monitor, navtex, gas sensor, man overboord systeem, navigatie instrument, instrumenten, clipper, target, kompas, transducer, log, navigatie verlichting. Volledige fabrieksgarantie op de Nasa producten. Verzenden of afhalen is mogelijk.

Tips en advies

De gerelateerde producten in de rubrieken Instrumenten en Instrument Toebehoren en AIS zijn voor u mogelijk ook interessant.


Heeft u een vraag. Neem contact met ons op per Email voor tips en advies over de Nasa Battery Monitor - Compact - Wit ( 24Vdc ).



Compact battery monitor, just 124 x 62mm x 23mm!

Based on the highly successful BM-1 marine battery monitor, the BM-1 Compact is especially designed for applications where space is at a premium.

Caravans, mobile homes, RV's, small boats and renewable power installations can all benefit from the BM-1 Compact. It is able to monitor the performance of any 24 Volt lead acid battery system with a capacity up to 600 AmpHours. The BM-1 Compact is supplied with a precision 100 Amp shunt and prefabricated cables to enable simple DIY installation.

The unit continually monitors the voltage, the current (charge or discharge) and calculates the state of charge together with the time remaining to charge or discharge the battery.

This information can lead to a more efficient use of the battery enhancing its life and reducing the risk of failure.

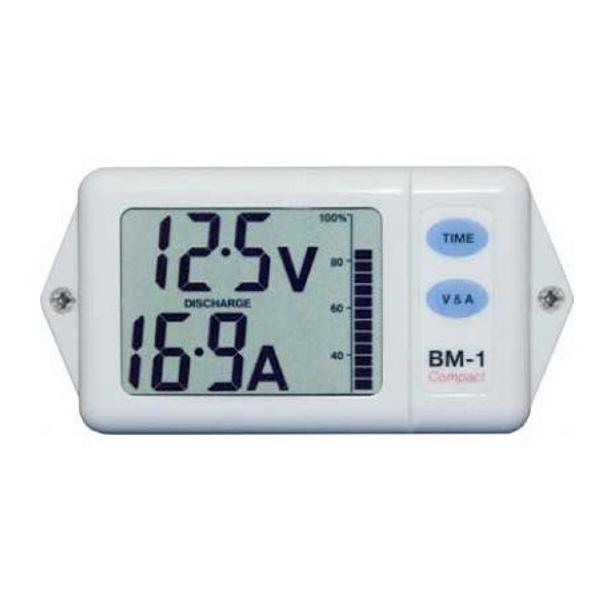

Operation is very simple. One screen displays the voltage, current (charge or discharge) and a bar graph showing the remaining capacity. A flashing alarm is also included to warn if the capacity is getting too low. A second screen shows the remaining time available at the current charge/discharge rate together with the remaining capacity in both analog and digital format.
