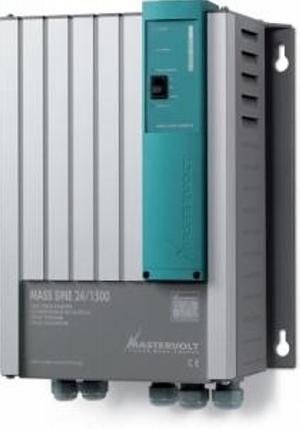

Mastervolt MASS SINE 24-1500 Inverter

An on board AC installation offers you a wealth of benefits by making possible the on board use of any domestic appliance, from microwave oven to hairdryer, DVD player to power tools. A Mass Sine inverter allows you to easily transform the voltage of your 24V battery to 230V/50Hz, so you enjoy all the comforts of home wherever you choose to go. And you save on the costs associated with adapting equipment. This Mass Sine inverter converts high-output battery power to 230V/50Hz with minimum heat generation. From regular TVs to flat screens, from electric kettles to icemakers, from drinks cooler to coffee machine, everything functions perfectly. There is an automatic stand-by or scan mode for no-consumption periods. You always will have AC power, even without shore connection or generator. With a generator and battery/inverter system even higher levels of consumption become possible. Low power demand periods with the battery and inverter running and the generator idle. Have both power sources running simultaneously for maximum capacity. The inverter can easily be incorporated into an existing shore power/on board system, and into systems with various power sources.

Combined with a generator and Masterswitch transfer system it can function as the distribution system for all AC power sources. The Mass Sine inverter can provide from 200% to 300% more electricity for appliances that require an initial surge of energy for starting (such as a washing machine or aircon system). This new generation of ultra-compact switch-mode sine wave inverters is changing the lives of its users dramatically. AC power on board, a home from home!

GENERAL SPECIFICATIONS Nominal battery voltage24V P30 power Tamb=25°C, cos phi 11500 VA Nom. power Tamb=40°C, cos phi 11200 VA Maximal peak load2900 VA Output waveformtrue sine Maximal efficiency92% Output voltage230V (±5%) Frequency50Hz (±0.05Hz) Dimensions (HxWxD)340x261x130 mm Weight6 kg Minimum battery capacity>150 Ah TECHNICAL SPECIFICATIONS TechnologyHF Switch off voltage low battery19V (±0.5V) Switch on voltage low battery22V (±0.5V) Switch off voltage high battery33V (±0.5V) Switch on voltage high battery31V (±0.5V) Max. allowable ripple on DC5% RMS Input current (nominal load)70A No load power consumption (off mode)0 mA No load power consumption (stand-by mode)25mA/0.6W No load power consumption ('low energy' mode - 208V)180mA/4.5W No load power consumption ('high power' mode - 230V)200mA/5W DC fuse required (slow blow)100A Minimum DC cable size25 mm² Harmonic distortion typical3.0% Coolingconventional/forced AC connection (single phase, 3-wire)internal Cos Phiall power factors allowed OPTIONS Panel C-4-RI (remote control) (art.no. 70404110)available Masterlink MICC (art.no. 70403105)available System Manager MICC (art.no. 70400115)available Universal connection cables for the remote controls6 metre (art.no. 6502001030), 10 metre (art.no. 6502100100) or 15 metre (art.no. 6502100150) Transfer systemMasterswitches and Systemswitches can be connected
