Maretron J2K/J1939 NMEA 2000 Engine Interface

Maretron J2K/J1939 NMEA 2000 Engine Interface

BTW (21%)
Product uit assortiment

Maretron J2K/J1939 NMEA 2000 Engine Interface
In de rubriek Maretron vindt u de producten en prijzen van Maretron. Een selectie Maretron producten die u kunt kopen zoals een marine netwerk, tank level monitor, vessel monitoring systeem, vloeistof sensor, druk sensor, windmeter. Volledige fabrieksgarantie op de Maretron producten. Verzenden of afhalen is mogelijk.

Tips en advies

De gerelateerde producten in de rubrieken GPS en GPS Toebehoren en Plotter zijn voor u mogelijk ook interessant.

Contact

Heeft u een vraag. Neem contact met ons op per Email voor tips en advies over de Maretron J2K/J1939 NMEA 2000 Engine Interface.

Specificaties

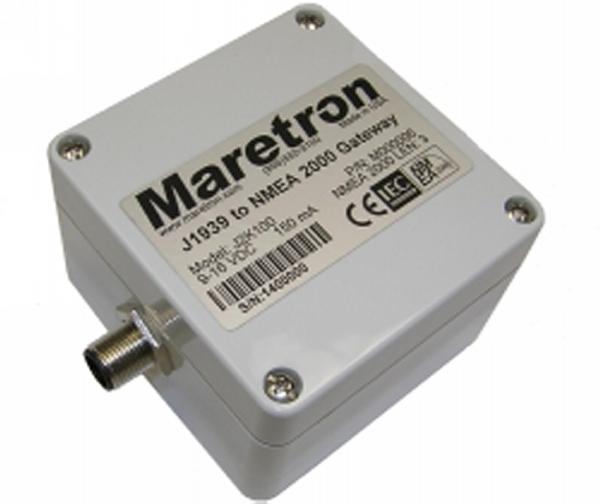

J2K100 — NMEA 2000® / J1939 Bridge (Engine/Transmission/Genset Gateway)

Maretron's J2K100 attaches directly into J1939 networks of compatible engines, transmissions, and gensets and converts the J1939 engine data to the NMEA 2000® marine digital interface. Critical engine, transmission, and genset data is then distributed throughout the vessel over a single cable where it can be monitored by any NMEA 2000® compatible display. All the information you need is available anywhere and everywhere you need it.

The J2K100 only listens to the J1939 network and draws no power from it (power is derived from the NMEA 2000® interface). The J2K100 does not transmit any information over the J1939 network so it will not interfere with existing engine control or status data in any way.

The J2K100 can also be used as part of a complete fuel computer. Simply connect the J2K100 together with the Maretron universal display (DSM200) and GPS antenna/receiver (GPS100) and you have a system capable of displaying gallons per hour and/or miles per gallon.
