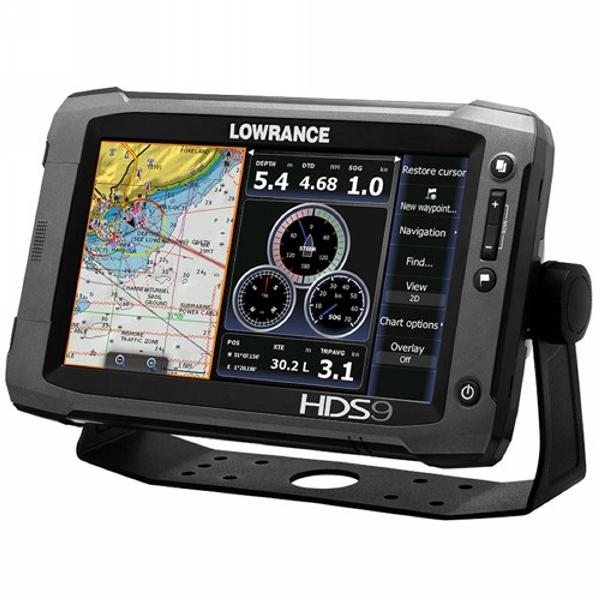

LOWRANCE HDS-9 GEN2 TOUCH SOUNDER/PLOTTER
The Powerful, New HDS Gen2 Touch — Redefining Ease-of-Use
Please note: The new HDS Touch products are not supplied with detailed cartography as standard. The units are supplied with a blank Micro SD card used for downloading your Navionics Gold or Platinium chart from Navionics.com at the standard price.
Key Features
Built-In, Four-Channel Sonar Technology Combine with award-winning Broadband Sounder™ for a more complete view of structure and fish detail that’s easier to interpret. | |
TrackBack View with New Preview Pane Scroll back through sonar history and mark waypoints without sacrificing real-time sonar recordings. Our new Preview Pane also gives you a quick way to reference the area of sonar history you’re covering. |
|
DownScan Overlay™ Lowrance’s exclusive Downscan Overlay combines the best of two sonar views directly beneath your boat: Broadband Sounder and DownScan Imaging. | |
Dual-Chart Viewing HDS Gen 2 Touch delivers the most mapping choices. With exclusive Dual Chart Viewing, you can now display Navionics® and Insight mapping simultaneously, giving you the best of both navigational views. |
|
3D Perspective View Lowrance Insight mapping now features a new 3d perspective view -- not only on optional Lake Insight™ and Nautic Insight™ PRO and HD cards, but also on the built-in Insight charts included on all HDS Gen2 displays. | |
Overlay Enhancements For Your Map Built-In StructureMap™ Overlay Overlay StructureScan™ left- and right-side images on any map for an easy-to-interpret picture of the structure below, and where it is in relation to your boat. |
|
NEW! Wider, Brighter Displays Choose up to a 12-inch display for unmatched clarity and detail, or select the 7-inch, that packs amazing power into a compact package. | |
New! Easy-To-Use Touchscreen Unlock the power of HDS with fewer button presses, making it simple to quickly master advanced features. The first touchscreen display created with anglers in mind, it’s even easy to use in rough conditions. Plus, SolarMAX™ enhancements for superior sunlight and wider-angle viewing. |
|
Flexible Networking Options Network and share data across all HDS displays for the ultimate flexibility and cost-savings. NMEA 2000®, NMEA 0183 and Ethernet-compatible with up to two Ethernet ports. | |
Performance Upgrade Choices Compatible with Broadband 4G™ and 3G™ Radar, LGC-4000 external GPS antenna, SonicHub™ marine audio server, AIS collision-avoidance system, engine interface cables, plus video camera inputs on 9- and 12-inch models. |
|
Overview | |
Display | Widescreen, 16:9 ; WVGA color TFT LCD |
Resolution | 800 x 480 |
Operating Frequency | (50/200 or 83/ 200 kHz) + 455/800 kHz |
Languages | 36 total, available on 5 language packs |
Media Port | 2 SD (full size) |
Overview | |
Display | Widescreen, 16:9 ; WVGA color TFT LCD |
Resolution | 800 x 480 |
Operating Frequency | (50/200 or 83/ 200 kHz) + 455/800 kHz |
Languages | 36 total, available on 5 language packs |
Media Port | 2 SD (full size) |
Display | |
Display Resolution | 800 x 480 |
Display Type | WVGA color TFT LCD |
Display Size | 9" / 228 mm |
Brightness | 1400 nits |
Sonar | |
Depth Alarm | Yes |
Shallow Alarm | Yes |
Standard Fishfinding Features: COLORLINE™ or GRAYLINE®, ASP™, FishSymbol I.D.™, FishTrack™, and more | Yes |
Technical/Environmental | |
Operating Temperature | -15° C to + 55° C (+5° F to + 131°F) |
Weight [kg] | 3 |
Product Width | 10.43” |
Product Depth | 3.32” |
Product Height | 6.65” |
Power | |
Power Consumption | 15.6 W (1.2 A @ 13 V DC) |
Power Supply (Supply Voltage) | 12 V DC (10.8 - 17.0 V DC min - max) |
GPS Navigation | |
Navigation: Routes | 200 |
Navigation: Waypoint Storage | 5000 |
GPS Antenna Type | Internal, high-sensitivity GPS+WAAS (Americas) or GPS+EGNOS+MSAS (non-Americas) |
Background Mapping | Built-in Insight USA™ (Americas) or Worldwide background map (non-Americas) |
Other | |
Languages | 36 |
