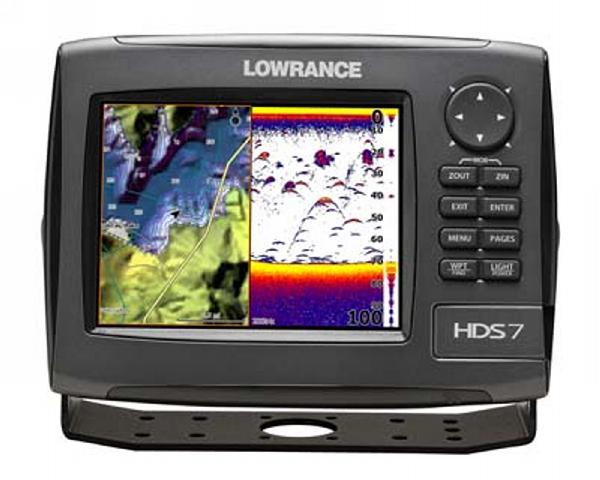

Lowrance HDS - 7M Kaartplotter Gen2 Met Lokale Navionics Silver Kaart

Lowrance HDS - 7M Kaartplotter Gen2 Met Lokale Navionics Silver Kaart

BTW (21%)
Product uit assortiment

Lowrance HDS - 7M Kaartplotter Gen2 Met Lokale Navionics Silver Kaart
In de rubriek Lowrance vindt u de producten en prijzen van Lowrance. Een selectie Lowrance producten die u kunt kopen zoals een fishfinder, dieptemeter, radar, kaartplotter, wireless fishfinder, portable fishfinder, marifoon, navigatie, transducer, gps, hds gen2, x serie, dsi, insight genesis, structurescan, broadband radar, ais, enertainment. Volledige fabrieksgarantie op de Lowrance producten. Verzenden of afhalen is mogelijk.

Tips en advies

De gerelateerde producten in de rubrieken Fishfinder en Plotter en Transducer zijn voor u mogelijk ook interessant.

Contact

Heeft u een vraag. Neem contact met ons op per Email voor tips en advies over de Lowrance HDS - 7M Kaartplotter Gen2 Met Lokale Navionics Silver Kaart.

Specificaties

The 6.4 in/16.3 cm display with LED backlight provides an easy-to-view, two-panel splitscreen – for example, with chart, radar or engine and system data – all at a more affordable price. Plus, HDS-7 offers the added option of a three-window view.One waterproof SD card slot to load high-detail charting options (see below). Users can also and save navigational data, and upload future HDS software feature updates.

DISPLAY

Display Size 6.4 in 163 mm
Display Resolution 480 x 640 (H x W)
Display Type 16-bit color Full VGA SolarMAX™ PLUS TFT
Backlighting Screen/Keypad
Backlighting Type Pure white LED
Sonar And GPS Overlay Data Yes
Split Screen Presentation Yes
Multilanguage Display Yes
Languages Supported 32

GPS / NAVIGATION

GPS Antenna Type Internal, high-sensitivity GPS+EGNOS+MSAS (non-Americas)
Background Map  Worldwide background map
Custom Mapping  Navionics Gold and Platinum+ chartcards
Waypoint Storage 5000
Routes 200
Plot Trails Up to 10 trails - up to 12,000 points/trail
Man Overboard Feature Yes
GPS Alarms Yes

RADAR

Antenna Type Optional Lowrance radar choices available

NETWORKING / CONNECTORS

NMEA 0183 Input Yes
NMEA 0183 Interface Type 422 [(1) Tx (1) Rx]
NMEA 2000 Certified Yes
NMEA Output 0183/2000
Connectors NMEA 2000®, NMEA 0183 and Ethernet

TECHNICAL / ENVIRONMENTAL

Built-in Backup Memory Yes
Casing Sealed and waterproof IPX7
Width 8.8 in 223 mm
Height 6.5 in 164 mm
Depth 3.5 in 88 mm
Operating Temperature (5F - 130F) (-15C - 55C)

POWER

Power Supply 10 - 17 vDC
Power Consumption 0.7A at 13 vDC with backlight on, 0.4A with backlight off
NMEA 2000 Load Equivalency Number 1 network load (50mA)

OTHER

Memory Card Capable One SD/MMC memory card slot
Operating Temperature Stored (-40F - 185F) (-40C - 85C)
Other Features

Performance Modules: Ethernet networking, Broadband Radar, Digital Radar, SonicHub, AIS, DSC VHF

new 2-year limited warranty
