Specificaties

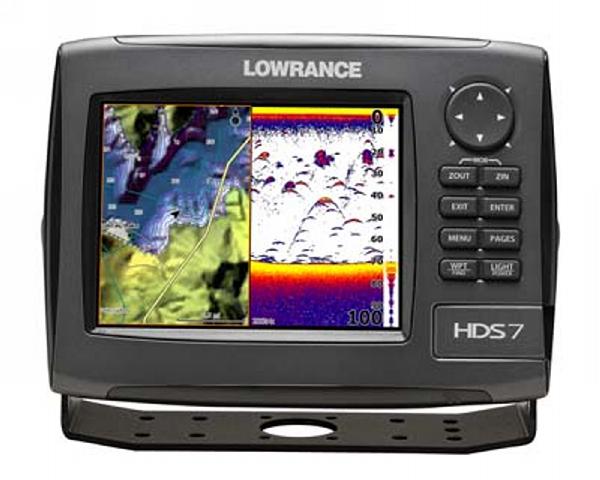

The 6.4 in/16.3 cm display with LED backlight provides an easy-to-view, two-panel splitscreen – for example, with chart and Broadband Sounder™ – all at a more affordable price. Plus, HDS-7 offers the added option of a three-window view.
DISPLAY
| Display Size
| 6.4 in 163 mm
|
| Display Resolution
| 480 x 640 (H x W)
|
| Display Type
| 16-bit color Full VGA SolarMAX™ PLUS TFT
|
| Backlighting
| Screen/Keypad
|
| Backlighting Type
| Pure white LED
|
| Sonar And GPS Overlay Data
| Yes
|
| Split Screen Presentation
| Yes
|
| Multilanguage Display
| Yes
|
| Languages Supported
| 32
SONAR / SOUNDER
| Sonar Frequency
| 50/83/200 kHz
|
| Transducer Type
| Multiple selections for Lowrance® and Airmar®
|
| Sonar Output Power
| Max 250W Broadband, analog equivalent 30,000W and 32W Broadband, analog equivalent 3,750 W
|
| Sonar Depth
| Max 5000 ft 1524 m
|
| Standard Fishfinder Features: COLORLINE™/GRAYLINE®, ASP™, FishSymbol I.D.™, FishTrack™, and more
| Yes
|
| FasTrack™
| Yes
|
| Ping Speed HyperScroll™
| Yes
|
| Depth Alarm
| Yes
|
| Shallow Alarm
| Yes
|
| Temperature Display
| Yes |
GPS / NAVIGATION
| GPS Antenna Type
| Internal, high-sensitivity GPS+WAAS (Americas) or GPS+EGNOS+MSAS (non-Americas)
|
| Background Map
| Worldwide background map
|
| Custom Mapping
| Navionics Gold or Platinum+
|
| Waypoint Storage
| 5000
|
| Routes
| 200
|
| Plot Trails
| Up to 10 trails - up to 12,000 points/trail
|
| Man Overboard Feature
| Yes
|
| GPS Alarms
| Yes |
RADAR
| Antenna Type
| Optional Lowrance radar choices available |
NETWORKING / CONNECTORS
| NMEA 0183 Input
| Yes
|
| NMEA 0183 Interface
| Type 422 [(1) Tx (1) Rx]
|
| NMEA 2000 Certified
| Yes
|
| NMEA Output
| 0183/2000
|
| Connectors
| NMEA 2000®, NMEA 0183 and Ethernet |
TECHNICAL / ENVIRONMENTAL
| Built-in Backup Memory
| Yes
|
| Casing
| Sealed and waterproof IPX7
|
| Width
| 8.8 in 223 mm
|
| Height
| 6.5 in 164 mm
|
| Depth
| 3.5 in 88 mm
|
| Operating Temperature
| (5F - 130F) (-15C - 55C) |
POWER
| Power Supply
| 10 - 17 vDC
|
| Power Consumption
| 0.7A at 13 vDC with backlight on, 0.4A with backlight off
|
| NMEA 2000 Load Equivalency Number
| 1 network load (50mA) |
OTHER
| Memory Card Capable
| One SD/MMC memory card slot
|
| Operating Temperature Stored
| (-40F - 185F) (-40C - 85C)
|
| Other Features
|
Performance Modules: StructureScan with optional LSS-1 module (8 color palette options), Broadband Sounder technology (with 14 color palette options), ethernet networking, Broadband Radar, Digital Radar, SonicHub, AIS, DSC VHF
new 2-year limited warranty | |
|
