Lowrance HDS - 5X Gen 2 Fishfinder Transducer Met 83/200Khz Transducer

Lowrance HDS - 5X Gen 2 Fishfinder Transducer Met 83/200Khz Transducer

BTW (21%)
Product uit assortiment

Lowrance HDS - 5X Gen 2 Fishfinder Transducer Met 83/200Khz Transducer
In de rubriek Lowrance vindt u de producten en prijzen van Lowrance. Een selectie Lowrance producten die u kunt kopen zoals een fishfinder, dieptemeter, radar, kaartplotter, wireless fishfinder, portable fishfinder, marifoon, navigatie, transducer, gps, hds gen2, x serie, dsi, insight genesis, structurescan, broadband radar, ais, enertainment. Volledige fabrieksgarantie op de Lowrance producten. Verzenden of afhalen is mogelijk.

Tips en advies

De gerelateerde producten in de rubrieken Fishfinder en Plotter en Transducer zijn voor u mogelijk ook interessant.

Contact

Heeft u een vraag. Neem contact met ons op per Email voor tips en advies over de Lowrance HDS - 5X Gen 2 Fishfinder Transducer Met 83/200Khz Transducer.

Specificaties

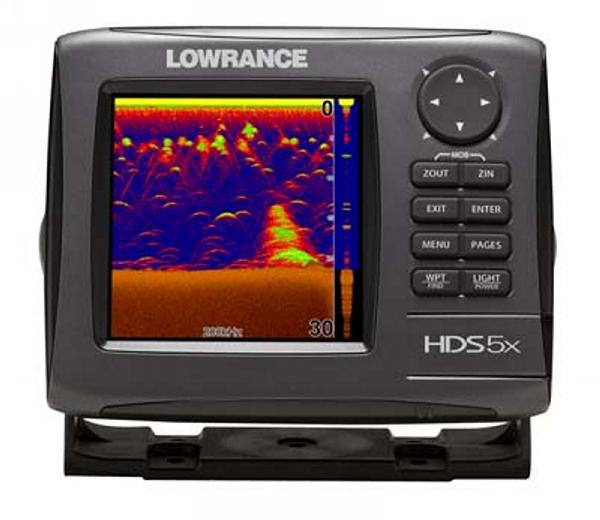

The HDS-5x has an exclusive high-resolution 5 in./12.7 cm display, at an attractive, entry-level HDS Gen2 price. While the splitscreen-zoom view with Broadband Sounder™ is a popular choice, options also include a three-window display.



DISPLAY

Display Size 5 in 127 mm
Display Resolution 480 x 480 (H x W)
Display Type 16-bit color SolarMAX™ PLUS TFT
Backlighting Screen/Keypad
Backlighting Type Flourescent (CCFL) backlit screen, LED keypad backlight
Sonar And GPS Overlay Data Yes
Split Screen Presentation Yes
Multilanguage Display Yes
Languages Supported 32

SONAR / SOUNDER

Sonar Frequency 50/83/200 kHz
Transducer Type Multiple selections for Lowrance® and Airmar®
Sonar Output Power Max 250W Broadband, analog equivalent 30,000W and 32W Broadband, analog equivalent 3,750 W
Sonar Depth Max 5000 ft 1524 m
Standard Fishfinder Features: COLORLINE™/GRAYLINE®, ASP™, FishSymbol I.D.™, FishTrack™, and more Yes
FasTrack™ Yes
Ping Speed HyperScroll™ Yes
Depth Alarm Yes
Shallow Alarm Yes
Temperature Display Yes

RADAR

Antenna Type Optional Lowrance radar choices available

NETWORKING / CONNECTORS

NMEA 0183 Input Yes
NMEA 0183 Interface Type 422 [(1) Tx (1) Rx]
NMEA 2000 Certified Yes
NMEA Output 0183/2000
Connectors NMEA 2000®, NMEA 0183 and Ethernet

TECHNICAL / ENVIRONMENTAL

Built-in Backup Memory Yes
Casing Sealed and waterproof IPX7
Width 7.3 in 185 mm
Height 5.8 in 147 mm
Depth 4 in 102 mm
Operating Temperature (5F - 130F) (-15C - 55C)

POWER

Power Supply 10 - 17 vDC
Power Consumption 0.7A at 13 vDC with backlight on, 0.4A with backlight off
NMEA 2000 Load Equivalency Number 1 network load (50mA)

OTHER

Memory Card Capable One SD/MMC memory card slot
Operating Temperature Stored (-40F - 185F) (-40C - 85C)
Other Features

Performance Modules: StructureScan with optional LSS-1 module (8 color palette options), Broadband Sounder technology (with 14 color palette options), ethernet networking, Broadband Radar, Digital Radar, SonicHub, DSC VHF

new 2-year limited warranty
