Specificaties

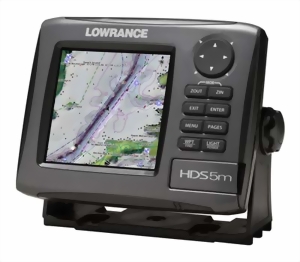

Enjoy HDS high-definition in a popular space-saving size, with an exclusive high-resolution 5 in./12.7 cm display, at an attractive, entry-level HDS Gen2 price. While the splitscreen view with chartplotter and radar is a popular choice, options also include a three-window display.
One waterproof SD card slot to load high-detail charting options (see below). Users can also and save navigational data, and upload future HDS software feature updates.
All HDS models are fully compatible with mapping solutions including Insight HD, Navionics® Gold, Platinum and Platinum+ with TurboView® and Fishing Hot Spots® PRO for the best possible chartplotter experience.
DISPLAY
Display Size
| 5 in 127 mm
|
Display Resolution
| 480 x 480 (H x W)
|
Display Type
| 16-bit color SolarMAX™ PLUS TFT
|
Backlighting
| Screen/Keypad
|
Backlighting Type
| Flourescent (CCFL) backlit screen, LED keypad backlight
|
Sonar And GPS Overlay Data
| Yes
|
Split Screen Presentation
| Yes
|
Multilanguage Display
| Yes
|
Languages Supported
| 32
GPS / NAVIGATION
GPS Antenna Type
| Internal, high-sensitivity GPS+WAAS (Americas) or GPS+EGNOS+MSAS (non-Americas)
|
Custom Mapping
| Optional Navionics Platinum+ and Platinum chartcards with Turboview™ for worldwide coverage
|
Waypoint Storage
| 5000
|
Routes
| 200
|
Plot Trails
| Up to 10 trails - up to 12,000 points/trail
|
Man Overboard Feature
| Yes
|
GPS Alarms
| Yes |
RADAR
Antenna Type
| Optional Lowrance radar choices available |
NETWORKING / CONNECTORS
NMEA 0183 Input
| Yes
|
NMEA 0183 Interface
| Type 422 [(1) Tx (1) Rx]
|
NMEA 2000 Certified
| Yes
|
NMEA Output
| 0183/2000
|
Connectors
| NMEA 2000®, NMEA 0183 and Ethernet |
TECHNICAL / ENVIRONMENTAL
Built-in Backup Memory
| Yes
|
Casing
| Sealed and waterproof IPX7
|
Width
| 7.3 in 185 mm
|
Height
| 5.8 in 147 mm
|
Depth
| 4 in 102 mm
|
Operating Temperature
| (5F - 130F) (-15C - 55C) |
POWER
Power Supply
| 10 - 17 vDC
|
Power Consumption
| 0.7A at 13 vDC with backlight on, 0.4A with backlight off
|
NMEA 2000 Load Equivalency Number
| 1 network load (50mA) |
OTHER
Memory Card Capable
| One SD/MMC memory card slot
|
Operating Temperature Stored
| (-40F - 185F) (-40C - 85C)
|
Other Features
|
Performance Modules: Ethernet networking, optional SIRIUS Satellite Weather/Radio, Broadband Radar, Digital Radar, SonicHub, AIS, DSC VHF
new 2-year limited warranty | |
|
