Lowrance HDS - 5 Gen2 Fishfinder 83/200 Met Lokale Navionics Silver Kaart

Lowrance HDS - 5 Gen2 Fishfinder 83/200 Met Lokale Navionics Silver Kaart

BTW (21%)
Product uit assortiment

Lowrance HDS - 5 Gen2 Fishfinder 83/200 Met Lokale Navionics Silver Kaart
In de rubriek Lowrance vindt u de producten en prijzen van Lowrance. Een selectie Lowrance producten die u kunt kopen zoals een fishfinder, dieptemeter, radar, kaartplotter, wireless fishfinder, portable fishfinder, marifoon, navigatie, transducer, gps, hds gen2, x serie, dsi, insight genesis, structurescan, broadband radar, ais, enertainment. Volledige fabrieksgarantie op de Lowrance producten. Verzenden of afhalen is mogelijk.

Tips en advies

De gerelateerde producten in de rubrieken Fishfinder en Plotter en Transducer zijn voor u mogelijk ook interessant.

Contact

Heeft u een vraag. Neem contact met ons op per Email voor tips en advies over de Lowrance HDS - 5 Gen2 Fishfinder 83/200 Met Lokale Navionics Silver Kaart.

Specificaties

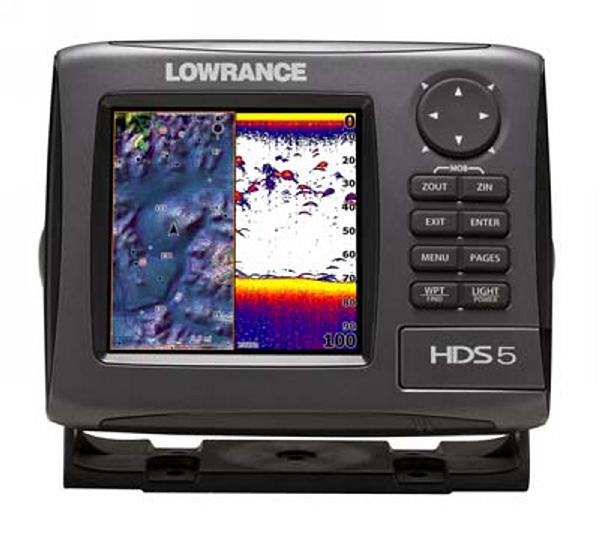

The HDS-5 has an exclusive high-resolution 5 in/12.7 cm display, at an attractive, entry-level HDS Gen2 price. While the splitscreen view with chartplotter and Broadband Sounder™ is a popular choice, options also include a three-window display.

One waterproof SD card slot to load high-detail charting options. Users can also and save sonar and navigational data, and upload future HDS software feature updates. All HDS models are fully compatible with Navionics® Gold and Platinum+ charts (sold seperatley) with TurboView® for the best possible chartplotter experience.

DISPLAY

Display Size 5 in 127 mm
Display Resolution 480 x 480 (H x W)
Display Type 16-bit color SolarMAX™ PLUS TFT
Backlighting Screen/Keypad
Backlighting Type Flourescent (CCFL) backlit screen, LED keypad backlight
Sonar And GPS Overlay Data Yes
Multilanguage Display Yes
Split Screen Presentation Yes
Languages Supported 32

SONAR / SOUNDER

Sonar Frequency 50/83/200 kHz
Transducer Type Multiple selections for Lowrance®
Sonar Output Power Max 250W Broadband, analog equivalent 30,000W and 32W Broadband, analog equivalent 3,750 W
Sonar Depth Max 5000 ft 1524 m
Standard Fishfinder Features: COLORLINE™/GRAYLINE®, ASP™, FishSymbol I.D.™, FishTrack™, and more Yes
FasTrack™ Yes
Ping Speed HyperScroll™ Yes
Depth Alarm Yes
Shallow Alarm Yes

GPS / NAVIGATION

GPS Antenna Type Internal, high-sensitivity GPS
Background Map  Worldwide background map
Custom Mapping Optional , Navionics Gold or Platinum+
Waypoint Storage 5000
Routes 200
Plot Trails Up to 10 trails - up to 12,000 points/trail
Man Overboard Feature Yes
GPS Alarms

Yes













NETWORKING / CONNECTORS

NMEA 0183 Input Yes
NMEA 0183 Interface Type 422 [(1) Tx (1) Rx]
NMEA 2000 Certified Yes
NMEA Output 0183/2000
Connectors NMEA 2000®, NMEA 0183 and Ethernet

POWER

Power Supply 10 - 17 vDC
Power Consumption 0.7A at 13 vDC with backlight on, 0.4A with backlight off
NMEA 2000 Load Equivalency Number 1 network load (50mA)
