Lowrance Elite 5 Base Combo Kaartplotter Fishfinder Met Hek Transducer

Lowrance Elite 5 Base Combo Kaartplotter Fishfinder Met Hek Transducer

BTW (21%)
Product uit assortiment

Lowrance Elite 5 Base Combo Kaartplotter Fishfinder Met Hek Transducer
In de rubriek Lowrance vindt u de producten en prijzen van Lowrance. Een selectie Lowrance producten die u kunt kopen zoals een fishfinder, dieptemeter, radar, kaartplotter, wireless fishfinder, portable fishfinder, marifoon, navigatie, transducer, gps, hds gen2, x serie, dsi, insight genesis, structurescan, broadband radar, ais, enertainment. Volledige fabrieksgarantie op de Lowrance producten. Verzenden of afhalen is mogelijk.

Tips en advies

De gerelateerde producten in de rubrieken Fishfinder en Plotter en Transducer zijn voor u mogelijk ook interessant.

Contact

Heeft u een vraag. Neem contact met ons op per Email voor tips en advies over de Lowrance Elite 5 Base Combo Kaartplotter Fishfinder Met Hek Transducer.

Specificaties

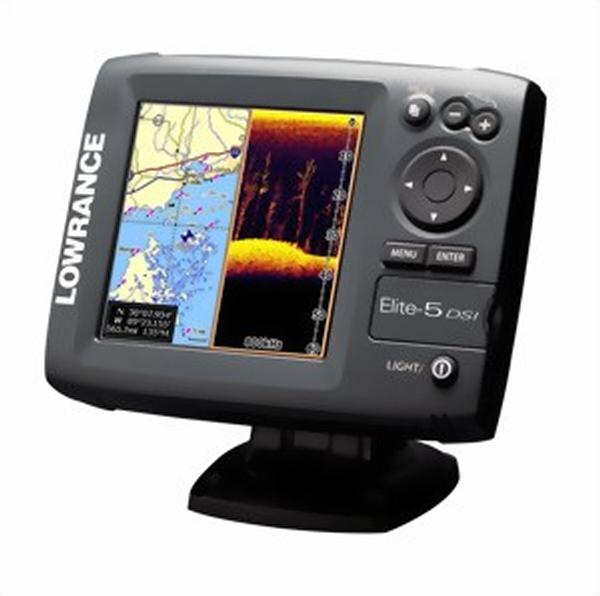

The colour Elite-5 fishfinder/chartplotter brings high performance and high colour to on-the-water enjoyment in every way, and without a high price. You enjoy incredible precision and functionality, in addition to a spectacular new view.


The brilliant 5 in./12.7 cm, 480x480 pixel SolarMAX™ 256-colour TFT display has unmatched screen brightness, contrast, resolution and viewing detail at wider angles and in bright sunlight. Adjustable screen and keypad backlight improves usability and visibility day or night.


The 500W RMS sounder reaches depth of 1,000'/305 m with its dual-frequency 83/200 kHz Skimmer®  transom-mount transducer with internal temp sensor and up to 120° of wider sonar coverage. Unique TrackBack™ feature offers immediate scroll-back to review multiple pages of fishfinder history.


The internal 16-channel GPS antenna provides great precision for navigation. And an external antenna option is also available for customized applications.  A waterproof microSD memory card slot is fully compatible with Navionics® Gold chartcards, as well as Fishing Hot Spots® and LakeMaster®* mapcards in the microSD format for U.S. anglers. Built-in memory allows for up to 3,000 waypoints, 100 routes/100 waypoints per route and 100 retraceable plot trails/up to 10,000 points per trail.


All of this, packaged with easy-to-use menus with Advanced Mode to expand features selection. An all-new case/mounting design provides for easy one-hand tilt/swivel view adjustment, removal and re-install - even fits same cut-out for previous 5 in./7 cm models for in-dash installations. And a new uniplug 1/4-turn connectors are compatible with earlier Lowrance uniplug installations to simplify upgrades to any new Elite model.



DISPLAY

Display Size 5 in 127 mm
Display Resolution 480x480 (H x W)
Display Type 256-colour SolarMAX™ PLUS TFT
Backlighting Flourescent cold cathode
Backlighting Levels Adjustable screen/keypad
Languages Supported 23

SONAR / SOUNDER

Sonar Frequency 83/200 kHz
Transducer Type Skimmer®
Sonar Output Power Max 500W RMS, 4000W PTP W
Sonar Depth Max 1000 ft 305 m
Sonar Alarms: Fish, Max and Min Depth Yes
Depth Alarm Yes
Shallow Alarm Yes
Temperature Display Yes

GPS / NAVIGATION

GPS Antenna Type Internal high-sensitivity WAAS + EGNOS + MSAS (optional external antenna)
GPS Receiver Channels 16 channels
Background Map World reference basemap or (U.S. models) over 3,000 enhanced lake maps with depth contour and shoreline detail, plus coastal depth contours/shoreline detail and spot depth soundings to 1,000 ft./305 m

Optional Navionics® Gold chartcards (U.S. & worldwide) and Fishing Hot Spots® and LakeMaster®* mapcards (U.S.) in microSD format



Waypoint Storage 3000
Routes 100
Plot Trails 100 retraceable plot trails/up to 10,000 points per trail
GPS Alarms Yes

NETWORKING / CONNECTORS

NMEA Output NMEA 0183

TECHNICAL / ENVIRONMENTAL

Built-in Backup Memory Yes
Waterproof Standard Sealed and waterproof, suitable for saltwater use
Width 6.9 in 174 mm
Height 5.4 in 136 mm
Depth 2.5 in 63 mm

POWER

Power Supply 10-17 vDC

OTHER

Memory Card Capable One (1) waterproof microSD card slot
Other Features

Unique TrackBack™ feature offers immediate scroll-back to review multiple pages of fishfinder history
