KVH TracPhone V3 Systeem

KVH TracPhone V3 Systeem

Product uit assortiment

KVH TracPhone V3 Systeem
In de rubriek KVH vindt u de producten en prijzen van KVH. Een selectie KVH producten die u kunt kopen zoals een satelliet antenne, volgsysteem, draaibare satelliet antenne, satelliet tv, vsat , fbb, fleet broadband, satelliet telefoon, mobile, inmarsat telefoon, isatphone, tracphone, tracvision, azimuth, sailcomp, autocomp. Volledige fabrieksgarantie op de KVH producten. Verzenden of afhalen is mogelijk.

Tips en advies

De gerelateerde producten in de rubrieken Satelliet Internet en Satelliet Televisie en Satelliet Telefoon zijn voor u mogelijk ook interessant.

Contact

Heeft u een vraag. Neem contact met ons op per Email voor tips en advies over de KVH TracPhone V3 Systeem.

Specificaties

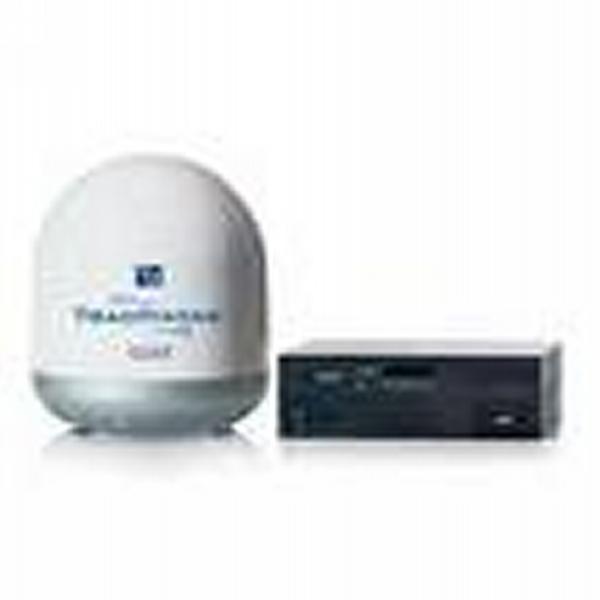

 Introducing the new TracPhone V3 - it will change the way you think about SATCOM at sea! At 14.5 inches (37 cm) in diameter, it is the world’s smallest maritime VSAT antenna. With airtime rates 1/10th the cost of Inmarsat - $0.99/MB for data and $0.49/minute for voice anywhere in the world - TracPhone V3 is the perfect solution for staying in touch with friends and family on shore. Enjoy surfing the web, communicating via e-mail, and calling home with a system designed for boats as small as 30 feet!

The TracPhone V3 offers outstanding data and voice connections via KVH’s global mini-VSAT Broadband service, the fastest growing maritime VSAT network and the choice of the U.S. Coast Guard. Together, this system offers the blazing speeds of VSAT (downloads as fast as 2 Mbps!) in the ultra-compact design historically offered only by Inmarsat. It is an end-to-end solution exclusively from KVH and equips your boat with a fully stabilised antenna, powerful ArcLight® spread spectrum modem, and a sleek below-decks antenna control unit.



  • A complete, end-to-end solution that includes a 14.5" antenna in an ultra-compact housing, below-decks antenna control unit, and modem, all powered by ViaSat Arclight® spread spectrum technology to support seamless global roaming.
  • Download speeds as fast as 2 Mbps for only $0.99 per MB.
  • Integrated voice line using KVH's Enhanced Voice Service technology for crystal clear calling at only $0.49 per minute, anywhere in the world.
  • Ultra-high efficiency antenna using KVH’s RingFire™ design and groundbreaking dielectric feed rod technology for excellent reception even in bad weather.
  • Rugged, commercial-grade, high-performance antenna design for tracking in bad weather; perfect for use on tuna towers.
  • Free access to KVH’s Velocity™ Acceleration software to optimize and speed up data connections via the mini-VSAT Broadband service
  • No need to hook up the antenna to the ship’s gyro compass – installation has never been simpler!
  • Dynamic, gyro-stabilized tracking and military-grade modem for outstanding performance along with onboard networking via an integrated WiFi and Ethernet hub
  •  World-class warranty and support with easy, 1-call activation.

SPECIFICATION:

Service - KVH mini-VSAT Broadband Airtime
Service Coverage Area - Global
Maximum Downlink Rate (Shore-to-Ship) - 2 Mbps
Maximum Uplink Rate (Ship-to-Shore) - 128 Kbps
Billing Method - Metered
Typical Cost per MB transmitted - $0.99 USD
Typical Cost per minute for Voice - $0.49 USD
Antenna Dome Standard Diameter x Height/Weight
15.5" x 17.5" / 25 lbs
(39.4 cm x 44.5 cm / 11.3 kg)
Antenna Dome Alternate Diameter x Height/Weight
19" x 21" / 30 lbs
(49 cm x 53 cm / 13.6 kg)
Matching TracVision Antenna Available
Standard - M3
Alternate - M5
Voice - KVH “Enhanced Voice” Service
Fax - Group 3 fax
Antenna Operating Temperature:
-13°F to +131°F
(-25°C to +55°C)
Antenna Storage Temperature:
-30°F to +160°F
(-34°F to +71ºC)
Power - 90-240 VAC

Certification:

Complies with EC directive 1999/5/EC RTTE, per compliance with EC directive 2006/95/EC, EMC directive 2004/108/EC and IEC 301-427; Compliant to FCC requirements
