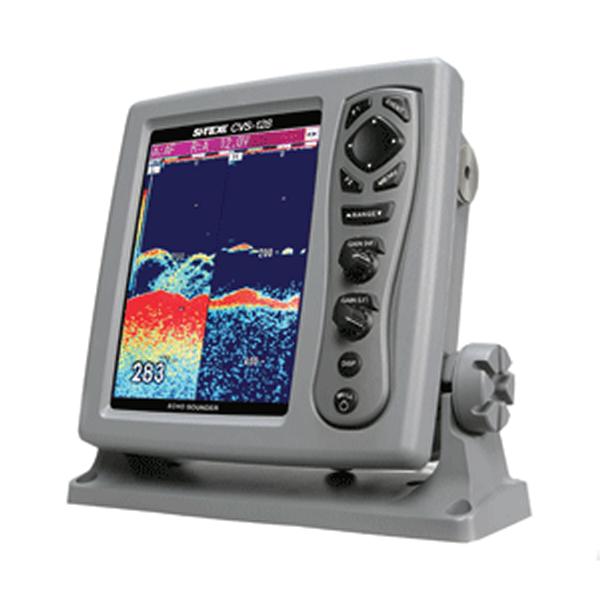

CVS 128 8" Digital Sounder W/O TR
Features
Koden Digital Filtering (KDF)
Eliminates clutter by filtering out the noise to provide a clearer more detailed image that enhances fish targets in shallow and deep depths, making it easier to differentiate between baitfish, larger fish, schools of fish and the sea floor.
600 W or 1 kW Output Power
The 1 kW is more suitable for detection at deeper bottom.
RGB Output to VGA Monitor
RGB output for connecting optional external VGA monitor.
Exclusive Sona-Tone
Identifies what’s under your boat with different sounds for fish and schools of fish.
Easy Operation
Easy access to all system functions with backlit keypad, programmable function keys, comprehensive menus, and dedicated rotary knobs for instant control of HF and LF Gain.
Store Image
Stores up to 10 screen images in built-in memory for recall later by “one-touch”.
Fishing Hot Spot
Leads you back to your favorite fishing hot spots or other previously saved positions in memory with input from optional GPS sensor.
Auto Function
Digitally selects the most reliable setting for such functions as Gain, Range, and Shift.
Sunlight Viewable
Brilliant 8.4” color LCD display with 8, 16, or 64 color levels and an anti-reflective coating for excellent readability in direct sunlight.
Easy Installation
Sleek, waterproof (IPX5 rating) case design with built-in overhead and flush mounting for easy installation
Specification
- Main functions: Store image, Fishing Hot Spot, Sona-Tone, Zoom, Auto, A-scope,Background colors: 64, 16, 8 colors
- Depth ranges: Max 1200 Meter, Max 3600 Feet, Max 700 Fathom/ Italian Fathom
- Output power 600 W/ 1 kW
- Output frequency Dual 50/200 kHz
- Dimensions 263(H) x 274(W) x 133(D) mm
- Weight 3.2 kg
- Power supply 10.8~31.2 VDC
