It is ideal for use in a number of situations:
- Remote office phone – on plantations, construction and mining sites
- Village phone – for resident calling, meeting Universal Service Obligations where alternative technologies are not economically viable
- Temporary fixed phone – social and welfare calling for displaced communities or aid and government workers in disaster situations, emergency relief and war zones
- Payphone – for migrant workers seeking low rates to call home

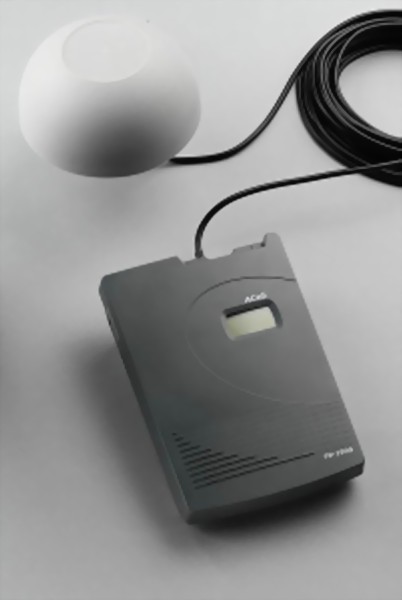

Inmarsat LandPhone:
- Competitively priced
- Easy to transport, set-up and use
- Robust solution for outdoors
- Ideal for multi-user communities
LandPhone can be used within Asia, Africa, and the Middle East using Inmarsat's latest generation I-4 satellite over the Indian Ocean Region.
| Size/Weight
| Size: 50x150x21mm approx.
Weight; 400grams approx.
|
| Power Requirements
| Operating Voltage: 10.5 - 24 Volts DC
Operating Current: <1000mA (typical)
|
| Interfaces
| Line Interface:
Voice - 2-wire
Connector - RJ-11
Dialling - DTMF
Data Interface:
Connector - DB9 Female
Interface - RS-232 serial
Speed - 2400bps transparent mode
|
| Antenna
| GENERAL
Type: Outdoor
Impendace: 50 ohm
Gain: 9dBi
Beam width: 70 degrees
MECHANICAL
Dimensions: 170 x 170 x 100mm
Connector: N-type female
Weight: 400 grams
MOUNTING
Elevation adjustment: 15 degrees to 90 degrees
Pole Diameter: 3/4 inch to 1 1/4 inch (to be provided by the user)
|
| Environmental Conditions
| Operating Temp: 0 C to + 50 C
Humidity: 5% to 95% non-condensing
Storage Temp: -20 C to + 75 C
|
| Standard AC adapter
| AC Power Supply: 100-235 volts AC, 50/60 Hz
Power adapter output: 12V, 1.4A (typical)
|
| Antenna cable
| Type: RG-58 coaxial or equivalent with cable loss less than 0.7dB/m
Impedance: 50ohm
Length: 10.5m
Connector to antenna: N-type male
Connector to main unit: SMA male
Total cable loss: Within 5dB to 7dB | |
