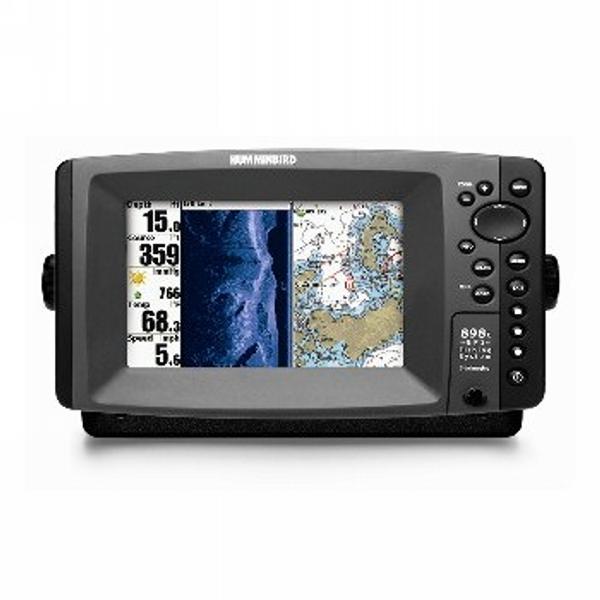

The 898cx SI Combo features a brilliant colour, wide screen 480V x 800H 7” display. Side Imaging®, Down Imaging™ and DualBeam PLUS™ sonar with up to 8000 watts* PTP power output, GPS chartplotting with built in UniMap™, and advanced Fishing System capabilities. Includes unit cover.
| Display Size
| 7" Diagonal
| Display Pixel Matrix
| 480V x 800H
|
| Display Type
| Colour TFT
| Display Colours/ Greyscale
| 65,000 colours
|
| Sonar - Standard
| HD Side Imaging®, Down Imaging™ and DualBeam PLUS™
| Sonar Coverage
| 20º, 60º & 180º @ -10db
|
| Sonar Frequency
| 200/83/455/800 kHz
| Sonar Optional
| QuadraBeam PLUS™
|
| Target Separation
| 65mm
| Power Output (max.)
| 1000 watts (RMS)* 8000 watts* (peak to peak)
|
| Depth Capability
| 45m SI, 457m & 900m*
| Temperature
| Included
|
| Speed
| GPS speed included
| Backlight
| Yes
|
| Waterproof
| Yes
| Unit Size Installed (Gimbal)
| 286W x 171H x 108D mm
|
| Unit Size Installed (In-dash)
| 286W x 152H x 63.5D mm
| Mount
| Gimbal or optional in-dash
|
| Transducer - BLA Code
| 103260
| Transducer Mounting - Standard
| Transom
|
| Power Input
| 10-20VDC
| GPS Receiver
| 50 Channel
| Ethernet Networking
| Yes
*Optional 1kw 50/200 kHz required for maximum power output. |
