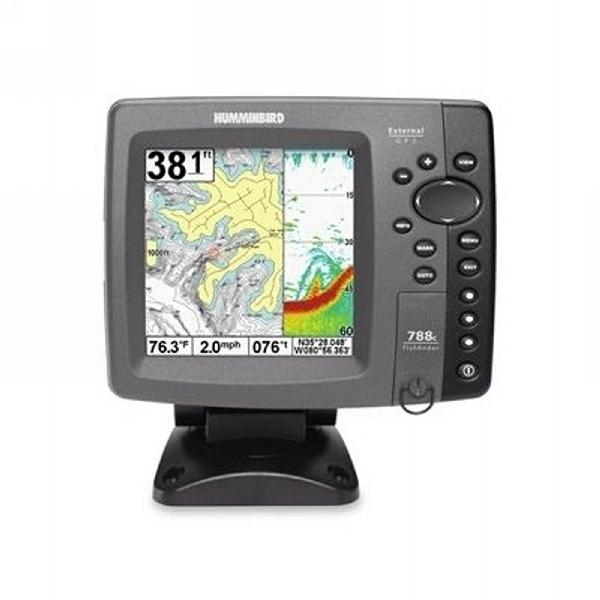

Humminbird 788Cxi Combo Kaartplotter Fishfinder

Humminbird 788Cxi Combo Kaartplotter Fishfinder

BTW (21%)
Product uit assortiment

Humminbird 788Cxi Combo Kaartplotter Fishfinder
In de rubriek Humminbird vindt u de producten en prijzen van Humminbird. Een selectie Humminbird producten die u kunt kopen zoals een fishfinder, kaartplotter, gps plotter, portable fishfinders, smartcast, transducer, gps, sonar, smartcast, elite, pirahnamax, mark. Volledige fabrieksgarantie op de Humminbird producten. Verzenden of afhalen is mogelijk.

Tips en advies

De gerelateerde producten in de rubrieken Fishfinder en Plotter en Transducer zijn voor u mogelijk ook interessant.

Contact

Heeft u een vraag. Neem contact met ons op per Email voor tips en advies over de Humminbird 788Cxi Combo Kaartplotter Fishfinder.

Specificaties

HUMMINBIRD 788CXI COMBO SOUNDER PLOTTER DISPLAY ONLY

The 788c Combo features a brilliant color, ultra-high resolution 640V x 640H 5" display, DualBeam PLUS sonar with 4000 Watts PTP power output, GPS Chartplotting with built-in UniMap, and advanced Fishing System capabilities. In addition, it includes dual card slots for maps and saving waypoints, as well as 3 programmable preset buttons to save your favorite views. Maximize your angling experience with the Humminbird 788c fishfinder GPS system.

Display

  • 5.0" diagonal
  • 640V x 640H
  • 256 Color TFT

Memory

  • Waypoints: 3,000
  • Routes: 50
  • Tracks: 50 w/ 20,000 points each

Sonar

DualBeam PLUS

  • 200 kHZ / 20° @ -10db
  • 83 kHz / 60° @ -10db
  • Depth: 1500 ft.

Power Output

  • 500 Watts (RMS)
  • 4,000 Watts (Peak-to-Peak)

GPS Features

  • 50 Channel GPS
  • Trackplotting
  • Chartplotting
  • GPS Speed

Display Size: 5.0" diagonal Display Pixel Matrix: 640V x 640H Display Type: 256 Color TFT Display Colors/Grayscale: 256 Colors
DualBeam PLUS
Sonar Coverage
  • 200 kHZ / 20° @ -10db
  • 83 kHz / 60° @ -10db
Sonar Optional: QuadraBeam PLUS Target Separation: 2.5 inches Power Output (RMS): 500 Watts (RMS) Power Output (Peak to Peak): 4,000 Watts (Peak-to-Peak) Temperature: Included Speed: Included Backlight: Yes Waterproof: Yes
Mount: Quick Disconnect Unit Size: 6.9"W x 7.5"H x 4.5"D
Mount: Optional In-dash Unit Size: 6.9"W x 5.4"H x 1.25"D Transducer - Standard: XNT-9-20-T Transducer Mounting: Inside Hull or Transom Power Input: 10-20 VDC
