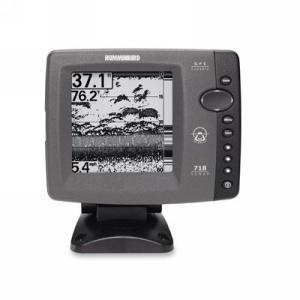

Humminbird 718X Mono Sounder with Transom Mounted Transducer
The 718 features a high resolution 16 level grayscale 320V x 320H 5" display, DualBeam PLUS sonar with 2400 Watts PTP power output, and advanced Fishing System capabilities. Maximize your angling experience with the Humminbird 718 fishfinder.
Display
5.0" diagonal
320V x 320H
FSTN LCD
Memory
Waypoints: 750
Routes: 0
Tracks: 10 w/ 2,000 points each
Sonar
DualBeam PLUS
200 kHz / 20° @ -10db
83 kHz / 60° @ -10db
Depth: 1000 ft.
Power Output
300 Watts (RMS)
2400 Watts (Peak-to-Peak)
GPS Features
50 Channel GPS (optional)
Trackplotting (optional)
Display Size:5.0" diagonal
Display Pixel Matrix:320V x 320H
Display Type:FSTN LCD
Display Colors/Grayscale:16 Level Grayscale
DualBeam PLUS
Sonar Coverage200 kHz / 20° @ -10db
83 kHz / 60° @ -10db
Sonar Optional:QuadraBeam PLUS
Target Separation:2.5 inches
Power Output (RMS):300 Watts (RMS)
Power Output (Peak to Peak):2400 Watts (Peak-to-Peak)
Temperature:Included
Speed:Capable
Backlight:Yes
Waterproof:Yes
Mount:Quick Disconnect
Unit Size:6.9"W x 7.5"H x 4.5"D
Mount:Optional In-dash
Unit Size:6.9"W x 5.4"H x 1.25"D
Transducer - Standard:XNT-9-20-T
Transducer Mounting:Inside Hull or Transom
Power Input:10-20 VDC
