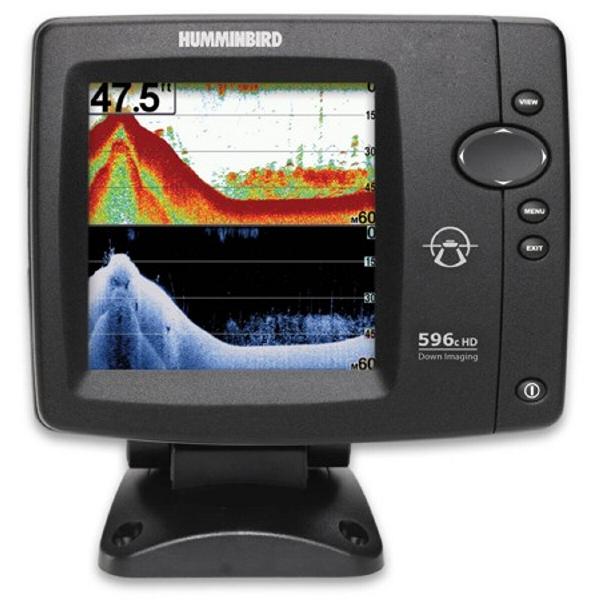

Humminbird 596Cx Hd Di Colour Combo Kaartplotter Fishfinder Met Hek Transducer

ADVANCED SONAR FEATURES

Choose your view with switchfire sonar

Building on our legacy of sonar innovation, exclusive Humminbird® SwitchFire™ puts anglers in complete command of how their sonar returns appear. With two unique display modes, you can adjust to your fishing conditions on the fly. Add or remove detail, account for water depth, temperature and turbulence, even experiment with lure presentations—all at the push of a button. SwitchFire adds a whole new dimension to 2D fishfinding.

Split Screen Zoom

Split Screen Zoom increases the displayed resolution to separate sonar returns that are very close together. In this view, the display is split to show a narrow slice of the full range view on the right and the zoomed view on the left. The zoom preview box on the right tracks the bottom in the full range view.

Wide/Narrow Cone Split Screen

This screen separates the sonar data using the two primary user selectable down-looking beams simultaneously in split screen. Fish ID feature shown indicates depth and in which beam fish are detected by changing color, size, and/or orientation of the fish icon.

Selective Fish ID+

Fish ID+ uses advanced sonar processing to interpret sonar returns, and displays a Fish Symbol when very selective requirements are met. When a fish is detected, a fish icon and its depth are displayed above the return that has been classified as being a fish. Three different fish icons represent intensity of the sonar return, and provide an indicator of relative fish size.

DualBeam PLUS™ equipped models represent targets detected in the 200kHz narrow beam as Orange Fish Symbols, and represent targets detected in the 83kHz wide beam as Blue Fish Symbols.

Real Time Sonar (RTS) Window

A Real Time Sonar (RTS®) Window appears on the right side of the display in the Sonar View only. The RTS® Window always updates at the fastest rate possible and shows only the returns from the bottom, structure, and fish that are within the transducer beam. The RTS® window can be displayed as narrow (standard), wide, or off.

Sonar Echo Enhancement

TrueArch™ Technology

Many competitive sonar products commonly use post processing software to “enhance” the arching effect produced when suspended targets enter and leave a sonar beam. This additional processing can slow down performance and exaggerate the information displayed. Humminbird’s TrueArch™ Technology utilizes parallel processing of sonar data to eliminate unwanted interference and noise and reveal unaltered sonar echoes resulting in true arches of fish targets. This helps anglers more quickly discern the size and depth of fish targets.
