Garmin Map 7015 Multi Function Display

Garmin Map 7015 Multi Function Display

BTW (21%)
Product uit assortiment

Garmin Map 7015 Multi Function Display
In de rubriek Garmin vindt u de producten en prijzen van Garmin. Een selectie Garmin producten die u kunt kopen zoals een radar, kaartplotter, stuurautomaat, marifoon, navigatie, transducer, edge, gps, forerunner, zumo, dakota, etrex, nuvi, gpsmap navigatie . Volledige fabrieksgarantie op de Garmin producten. Verzenden of afhalen is mogelijk.

Tips en advies

De gerelateerde producten in de rubrieken Radar Plotter en Stuurautomaat en Instrumenten zijn voor u mogelijk ook interessant.

Contact

Heeft u een vraag. Neem contact met ons op per Email voor tips en advies over de Garmin Map 7015 Multi Function Display.

Specificaties

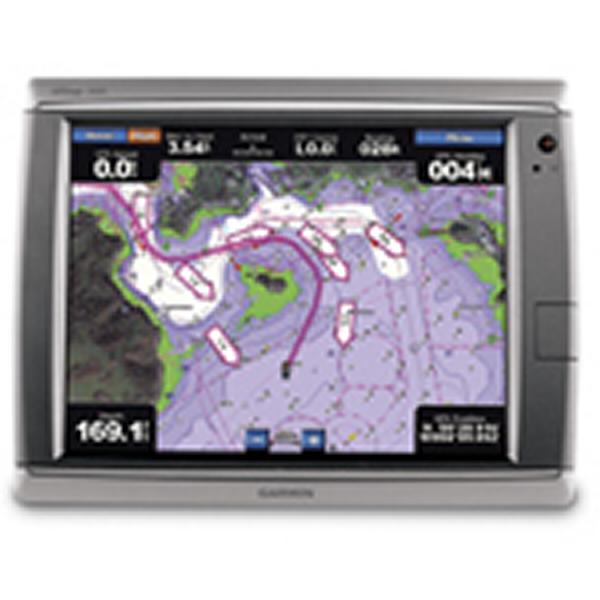

Put the power of Garmin’s next-generation marine navigator right at your fingertips with the GPSMAP 7015. This touchscreen chartplotter is the flagship in Garmin’s line of full-featured marine products. The GPSMAP 7015 comes standard with a worldwide, satellite-enhanced basemap as well as video-quality resolution on an impressive 15.5” XGA display. The GPSMAP 7015 also provides total system integration – allowing support for the addition of sonar, radar, weather and more. For additional enhanced features, you can add the optional BlueChart® g2 Vision® card.

Designed to Move

The GPSMAP 7015 brings unprecedented speed to your vessel with Garmin G MotionTM technology – the future of marine technology today. With blazing-fast map redraw and refresh rates, you’ll have near real-time data to guide you. Whether you’re in a crowded harbor or in uncertain weather, you’ll have the confidence you need to navigate your surroundings with the GPSMAP 7015 as your guide. The GPSMAP 7015 is also compatible with an optional remote and computer mouse for added flexibility. And with a sleek and stylish design that was built to brave the elements, the GPSMAP 7015 looks great in any helm.

View Detailed Graphics and Video

The GPSMAP 7015 features a worldwide basemap with high quality satellite images in place of more traditional maps. And for more detail, you can easily add maps with the SD™ card slot without having to connect to a computer. The GPSMAP 7015’s high-speed processor draws maps quickly, and its simple intuitive interface makes navigating easy. In addition, the GPSMAP 7015 has support for PC input so it can be used to display presentations and computer applications. And keep tabs on your engine room or other area of your boat, you can also connect a live video feed with the GPSMAP 7015’s video input and output options. The GPSMAP 7015 also comes standard with a wide range of brightness options - from sunlight-readable to low-light conditions, you can adjust the setting to match the your surroundings.

Add Extras with BlueChart g2 Vision

With the optional BlueChart g2 Vision SD card, you can add a whole new dimension of exceptional features to your chartplotter.

  • MarinerEye view and FishEye view provide you a 3-dimensional perspective of map information, both above and below the waterline.
  • High-resolution satellite images and aerial photographs help you orient yourself in unfamiliar areas.
  • Auto Guidance technology searches through all relevant charts to create a route you can actually follow — one that avoids obstacles, shallow water, buoys and other obstructions.

Connect to your network

The GPSMAP 7015 easily connects to your network - providing system integration so you can interface with additional MFDs and add remote sensors. Once connected, you can share information between the GPSMAP 7015 and other chartplotters on your boat. You can also add high-powered radar, sonar and XM satellite weather and radio to your system.



Physical & Performance:

Unit dimensions, WxHxD: 15.5" x 11.8" x 5.9" (39.4 x 30.1 x 14.9 cm)
Display size, WxH: 12" x 9", 15" diagonal (30.5 x 22.9 cm, 38.1 cm diagonal)
Display resolution, WxH: 1024 x 768 pixels
Display type: Touchscreen XGA display
Weight: 17.4 lb (5.4 kg)
Battery: none
Battery life: none
Waterproof: yes (IPX7)
High-sensitivity receiver: yes
Antenna: external
NMEA input/output: NMEA 0183, NMEA 2000

Maps & Memory:

Basemap: yes
Preloaded maps: no
Ability to add maps: yes
Built-in memory: none (cannot load maps to internal memory)
Accepts data cards: SD™ card slot (BlueChart g2 Vision cards sold separately)
Waypoints/favorites/locations: 5,000
Routes: 100
Track log: 50,000 points; 50 saved tracks

Features:

Garmin radar compatible: yes
Garmin sonar compatible: yes
Garmin Marine Network™ compatible: yes
Touchscreen: yes
Supports AIS (tracks target ships' position): yes
Supports DSC (displays position data from DSC capable VHF radio): yes
Audible alarms: yes
Tide tables: yes
Hunt/fish calendar: no
Sun and moon information: yes
3-D map view: yes (with optional BlueChart g2 Vision card)
Auto Guidance: yes (with optional BlueChart g2 Vision card)
XM WX Weather & Radio for U.S. & Canada compatible: yes
Automatic routing (turn by turn routing on roads): no
Voice prompts (e.g. "Turn right in 500 ft."): no
Speaks street names (e.g. "Turn right ON ELM STREET in 500 ft."): no
Headphone jack/audio line-out: no
Audio/video input/output: yes
Portable: no
Automotive/motorcycle-friendly: no
Additional:

Interface Inputs/Outputs: 4 NMEA 0183 inputs, 2 NMEA 0183 outputs; 4 video inputs for onboard cameras, 1 PC monitor video output, 1 PC monitor input
