Garmin GPSMAP 8530 Processor Met Wereldwijde Kaart

Garmin GPSMAP 8530 Processor Met Wereldwijde Kaart

Product uit assortiment

Garmin GPSMAP 8530 Processor Met Wereldwijde Kaart
In de rubriek Garmin vindt u de producten en prijzen van Garmin. Een selectie Garmin producten die u kunt kopen zoals een radar, kaartplotter, stuurautomaat, marifoon, navigatie, transducer, edge, gps, forerunner, zumo, dakota, etrex, nuvi, gpsmap navigatie . Volledige fabrieksgarantie op de Garmin producten. Verzenden of afhalen is mogelijk.

Tips en advies

De gerelateerde producten in de rubrieken Radar Plotter en Stuurautomaat en Instrumenten zijn voor u mogelijk ook interessant.

Contact

Heeft u een vraag. Neem contact met ons op per Email voor tips en advies over de Garmin GPSMAP 8530 Processor Met Wereldwijde Kaart.

Specificaties

GARMIN GPSMAP 8530 PROCESSOR WITH WORLDWIDE CHARTS

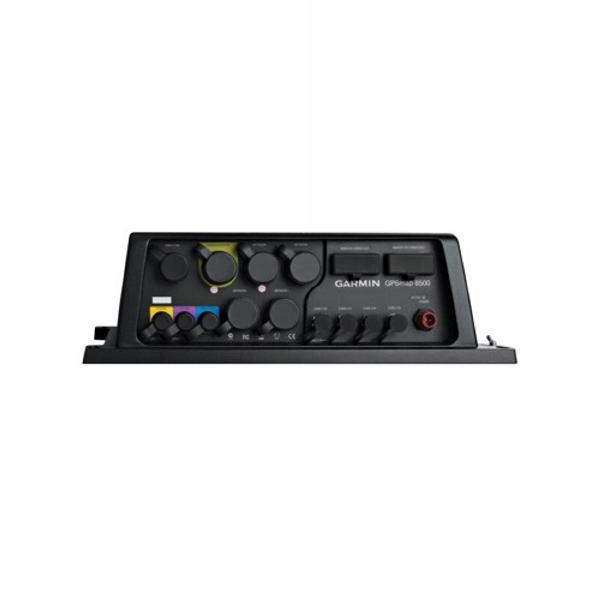

GARMIN GPSMAP 8500 PROCESSOR

The GPSMAP 8500 black box system provides a powerfully simple, fully-integrated helm that can give your boat a beautiful glass helm look. Enjoy full touchscreen operation including pinch-to-zoom and other touch controls for intuitive operation when accompanied by Garmin marine 15” (XGA resolution), 17” (SXGA resolution) and 19” (SXGA resolution) touchscreen monitors (sold separately). Anti-glare and bright LED backlighting makes these displays clearly viewable on the monitors in bright sunlight; auto-dimming provides outstanding visibility at night.

KEY FEATURES

  • 15” XGA touch screen (GMM 150)*
  • 17” SXGA touch screen (GMM 170)*
  • 19” SXGA touch screen (GMM 190)*
  • Dual-touch touchscreen with pinch-to-zoom
  • External high-sensitive 10Hz GPS receiver*
  • Garmin Marine Network compatible
  • NMEA 0183 & 2000 compatible
  • 5,000 waypoints and 100 routes
    50 000 track log points; 50 saved tracks
  • 2 slots for SD cards via external card reader*
  • BlueChart® g2 & g2 Vision compatible
  • Flush- or flat-mounted
  • 40% more processing power
  • Garmin SmartMode™ control
  • 2 DVI-I monitor video output (8500)
  • 4 composite BNC video inputs (8500)
  • 2 DVI-D in, 1 component video in (GMM)
  • 3 VGA, 3 composite video inputs (GMM)
  • Remote control capability via GRID™ *
  • Multimedia control capability

* Item not included, sold separatly

HIGH SYSTEM PERFORMANCE

External 10 Hz GPS/GLONASS receiver1 updates position and heading 10 times per second to display a more fluid vessel movement and dramatically improves your ability to accurately mark and navigate to 5,000 waypoints. Dual-core processor offers 40 percent more processing power than previous Garmin series, allowing faster, more fluid screen refresh while navigating or panning.

SMARTMODE™ CONTROL



Integrates...everything, including various sonar technologies, integrated autopilot, connectivity, apps and engine data. SmartMode™ control allows the user to quickly change all screens at a helm in sync to a preset mode. Everything you need is at the tip of your finger, all on 1 screen.

DUAL-TOUCH GLASS HELM DISPLAY

Bright XGA or SXGA touchscreen includes pinch-to-zoom and other touch controls to give you intuitive control. Anti-glare and LED backlighting makes this series our easiest to view in bright sunlight. Auto-dimming provides outstanding visibility at night.

BLUECHART® G2 VISION

Bluechart g2 Vision with genuine, 3D map presentation both above and below the surface of the water. g2 Vision can also boast Garmin’s advanced Auto Guidance, high-resolution satellite images, aerial photos and detailed road maps, including points of interest in coastal areas.

What's in the box:

  • GPSMAP 8500 or 8530
  • Mounting hardware
  • Power cable
  • NMEA 0183 cable
  • NMEA 2000 2 m backbone/drop cable
  • NMEA 2000 power cable
  • NMEA 2000 T-connector & terminator kit
  • Manual case with documentation

PHYSICAL & PERFORMANCE



Unit dimensions, WxHxD:

40.6 x 23.95 x 12.35 (8500); 37.5 x 32.6 x 7.3 (GMM 150) 41 x 37 x 7.5 (GMM 170); 45.4 x 39.9 x 8.1 (GMM 190) cm

Display size:

15" (GMM150); 17" (GMM 170); 19" (GMM 190) diagonal

Display resolution, WxH:

XGA, 1024 x 768 (150); SXGA, 1280 x 1024 (170/190)

Weight:

4.9 kg (8500); 4.3 kg (150); 5.0 kg (170); 5.7 kg (190)

Waterproof:

Yes, IPX7 (8500); IPX6 front when mounted correctly (GMM)

Accepts data cards:

Dual SD™ card slots (external Garmin Card Reader1)

Waypoints/Routes/Track log

5 000 / 100 / 50 000

Interface:

Garmin Marine Network, NMEA 0183 & 2000

Wireless Interface:

No

Power Consumption:

0.9A at 12V (8500); 3.8A at 12V (150); 3.4A at 12V (170);

7.7A at 12V (190)

IMPORTANT NOTES

  • GPSMAP 8530 features preloaded detailed BlueChart® g2 marine charts for the entire world
  • GPS 19x is not included, sold separately
  • External Garmin Card Reader, no integrated card readers on the units.
  • Flat-mount kit available as an optional accessory (GMM)
  • GRID remote control and Garmin Card Reader available as an optional accessory
  • GRID and Garmin Card Reader connects to the 8500/8530 over Garmin Marine Network
