Garmin GPSMAP 8015 met GPS en kaartlezer

Garmin GPSMAP 8015 met GPS en kaartlezer

Product uit assortiment

Garmin GPSMAP 8015 met GPS en kaartlezer
In de rubriek Garmin vindt u de producten en prijzen van Garmin. Een selectie Garmin producten die u kunt kopen zoals een radar, kaartplotter, stuurautomaat, marifoon, navigatie, transducer, edge, gps, forerunner, zumo, dakota, etrex, nuvi, gpsmap navigatie . Volledige fabrieksgarantie op de Garmin producten. Verzenden of afhalen is mogelijk.

Tips en advies

De gerelateerde producten in de rubrieken Radar Plotter en Stuurautomaat en Instrumenten zijn voor u mogelijk ook interessant.

Contact

Heeft u een vraag. Neem contact met ons op per Email voor tips en advies over de Garmin GPSMAP 8015 met GPS en kaartlezer.

Specificaties

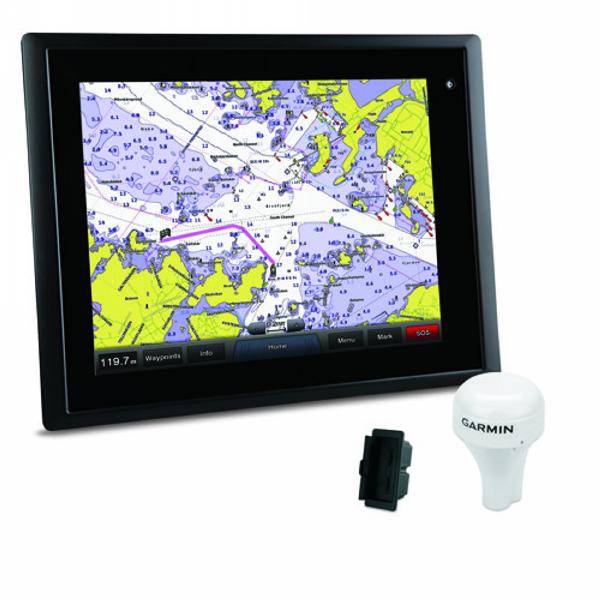

GARMIN GPSMAP 8015 WITH GPS AND CARD READER

Introducing a true glass helm appearance into the boating industry.

Our new fully-integrated 8”, 12” and 15” LED backlit touchscreen multifunction displays (MFD) includes the best user interface from Garmin. The epitome of the Power of Simple™, the GPSMAP 8000 MFD series is one of the most technologically-advanced, easiest to use MFDs we have ever offered. Bright touchscreen include pinch-to-zoom and other touch controls to give you intuitive control. External 10Hz GPS/GLONASS receiver and dual-core processor offers 40 percent more processing power than previous Garmin series, allowing faster, more fluid screen refresh while navigating or panning.

Key Features:

  • 8.4” SVGA touch screen (GPSMAP 8008)
  • 12.1” XGA touch screen (GPSMAP 8012)
  • 15” XGA touch screen (GPSMAP 8015)
  • Dual-touch touchscreen with pinch-to-zoom
  • External high-sensitive 10Hz GPS receiver
  • Garmin Marine Network compatible
  • NMEA 0183 & 2000 compatible
  • 5,000 waypoints and 100 routes
  • 50 000 track log points; 50 saved tracks
  • 2 slots for SD cards via external card reader
  • BlueChart® g2 & g2 Vision compatible
  • Bail (not 8015), flush- or flat-mounted
  • 40% more processing power
  • Garmin SmartMode™ control
  • 1 DVI-I monitor output
  • 2 composite BNC video inputs (8008/8012)
  • 4 composite BNC video inputs (8015)
  • 1 DVI-I in, 1 component video in (8015)
  • Remote control capability via GRID™
  • Multimedia control capability

HIGH SYSTEM PERFORMANCE

External 10 Hz GPS/GLONASS receiver updates position and heading 10 times per second to display a more fluid vessel movement and dramatically improves your ability to accurately mark and navigate to 5,000 waypoints. Dual-core processor offers 40 percent more processing power than previous Garmin series, allowing faster, more fluid screen refresh while navigating or panning.

SMARTMODE™ CONTROL

Integrates...everything, including various sonar technologies, integrated autopilot, connectivity, apps and engine data. SmartMode™ control allows the user to quickly change all screens at a helm in sync to a preset mode. Everything you need is at the tip of your finger, all on 1 screen.

DUAL-TOUCH GLASS HELM DISPLAY

Bright SVGA or XGA touchscreen includes pinch-to-zoom and other touch controls to give you intuitive control. Anti-glare and LED backlighting makes this series our easiest to view in bright sunlight. Auto-dimming provides outstanding visibility at night.

BLUECHART® G2 VISION

Bluechart g2 Vision with genuine, 3D map presentation both above and below the surface of the water. g2 Vision can also boast Garmin’s advanced Auto Guidance, high-resolution satellite images, aerial photos and detailed road maps, including points of interest in coastal areas.

What's inthe box:

  • GPSMAP 8008 or 8012 or 8015
  • Bail mount and knobs (not 8015)
  • GPS 19x NMEA 2000®*
  • Garmin Card Reader*
  • Protective cover
  • Flush mount gasket and hardware
  • Power cable
  • NMEA 0183 cable
  • NMEA 2000 2 m backbone/drop cable
  • NMEA 2000 power cable
  • NMEA 2000 T-connector & terminator kit
  • Manual case with documentation

* Item not included in the Display only SKU

PHYSICAL & PERFORMANCE



Unit dimensions, WxHxD:

26.9 x 19.4 x 11.6 cm (8008); 33.2 x 24.7 x 9.6 cm (8012); 40.2 x 30.6 x 9.4 cm (8015)

Display size:

8.4" (8008); 12.1" (8012); 15" (8015) diagonal

Display resolution, WxH:

SVGA, 800 x 600 (8008); XGA, 1024 x 768 (8012/8015)

Weight:

5.1 kg (8008); 5.2 kg (8012); 7.62 kg (8015)

Waterproof:

Yes (IPX7)

Accepts data cards:

Dual SD™ card slots (external Garmin Card Reader)

Waypoints/Routes/Track log

5 000 / 100 / 50 000

Interface:

Garmin Marine Network, NMEA 0183 & 2000

Wireless Interface:

No

Power Consumption:

1.3A at 12V (8008); 1.6A at 12V (8012); 2.5A at 12V (8015)

IMPORTANT NOTES

  • External Garmin Card Reader, no integrated card readers on the units.
  • Flat-mount kit available as an optional accessory
  • GRID remote control available as an optional accessory
  • GRID and Garmin Card Reader connects to the MFD over Garmin Marine Network
