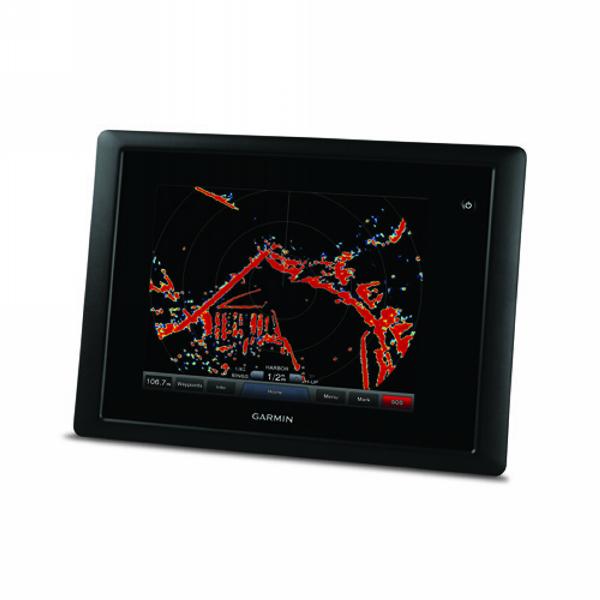

GARMIN GPSMAP 8008 - DISPLAY ONLY

Introducing a true glass helm appearance into the boating industry.

Our new fully-integrated 8”, 12” and 15” LED backlit touchscreen multifunction displays (MFD) includes the best user interface from Garmin. The epitome of the Power of Simple™, the GPSMAP 8000 MFD series is one of the most technologically-advanced, easiest to use MFDs we have ever offered. Bright touchscreen include pinch-to-zoom and other touch controls to give you intuitive control. External 10Hz GPS/GLONASS receiver and dual-core processor offers 40 percent more processing power than previous Garmin series, allowing faster, more fluid screen refresh while navigating or panning.

Key Features:

  • 8.4” SVGA touch screen (GPSMAP 8008)
  • 12.1” XGA touch screen (GPSMAP 8012)
  • 15” XGA touch screen (GPSMAP 8015)
  • Dual-touch touchscreen with pinch-to-zoom
  • External high-sensitive 10Hz GPS receiver
  • Garmin Marine Network compatible
  • NMEA 0183 & 2000 compatible
  • 5,000 waypoints and 100 routes
  • 50 000 track log points; 50 saved tracks
  • 2 slots for SD cards via external card reader
  • BlueChart® g2 & g2 Vision compatible
  • Bail (not 8015), flush- or flat-mounted
  • 40% more processing power
  • Garmin SmartMode™ control
  • 1 DVI-I monitor output
  • 2 composite BNC video inputs (8008/8012)
  • 4 composite BNC video inputs (8015)
  • 1 DVI-I in, 1 component video in (8015)
  • Remote control capability via GRID™
  • Multimedia control capability

HIGH SYSTEM PERFORMANCE

External 10 Hz GPS/GLONASS receiver updates position and heading 10 times per second to display a more fluid vessel movement and dramatically improves your ability to accurately mark and navigate to 5,000 waypoints. Dual-core processor offers 40 percent more processing power than previous Garmin series, allowing faster, more fluid screen refresh while navigating or panning.

SMARTMODE™ CONTROL

Integrates...everything, including various sonar technologies, integrated autopilot, connectivity, apps and engine data. SmartMode™ control allows the user to quickly change all screens at a helm in sync to a preset mode. Everything you need is at the tip of your finger, all on 1 screen.

DUAL-TOUCH GLASS HELM DISPLAY

Bright SVGA or XGA touchscreen includes pinch-to-zoom and other touch controls to give you intuitive control. Anti-glare and LED backlighting makes this series our easiest to view in bright sunlight. Auto-dimming provides outstanding visibility at night.

BLUECHART® G2 VISION

Bluechart g2 Vision with genuine, 3D map presentation both above and below the surface of the water. g2 Vision can also boast Garmin’s advanced Auto Guidance, high-resolution satellite images, aerial photos and detailed road maps, including points of interest in coastal areas.

What's inthe box:

  • GPSMAP 8008 or 8012 or 8015
  • Bail mount and knobs (not 8015)
  • GPS 19x NMEA 2000®*
  • Garmin Card Reader*
  • Protective cover
  • Flush mount gasket and hardware
  • Power cable
  • NMEA 0183 cable
  • NMEA 2000 2 m backbone/drop cable
  • NMEA 2000 power cable
  • NMEA 2000 T-connector & terminator kit
  • Manual case with documentation

* Item not included in the Display only SKU

PHYSICAL & PERFORMANCE



Unit dimensions, WxHxD:

26.9 x 19.4 x 11.6 cm (8008); 33.2 x 24.7 x 9.6 cm (8012); 40.2 x 30.6 x 9.4 cm (8015)

Display size:

8.4" (8008); 12.1" (8012); 15" (8015) diagonal

Display resolution, WxH:

SVGA, 800 x 600 (8008); XGA, 1024 x 768 (8012/8015)

Weight:

5.1 kg (8008); 5.2 kg (8012); 7.62 kg (8015)

Waterproof:

Yes (IPX7)

Accepts data cards:

Dual SD™ card slots (external Garmin Card Reader)

Waypoints/Routes/Track log

5 000 / 100 / 50 000

Interface:

Garmin Marine Network, NMEA 0183 & 2000

Wireless Interface:

No

Power Consumption:

1.3A at 12V (8008); 1.6A at 12V (8012); 2.5A at 12V (8015)

IMPORTANT NOTES

  • External Garmin Card Reader, no integrated card readers on the units.
  • Flat-mount kit available as an optional accessory
  • GRID remote control available as an optional accessory
  • GRID and Garmin Card Reader connects to the MFD over Garmin Marine Network
