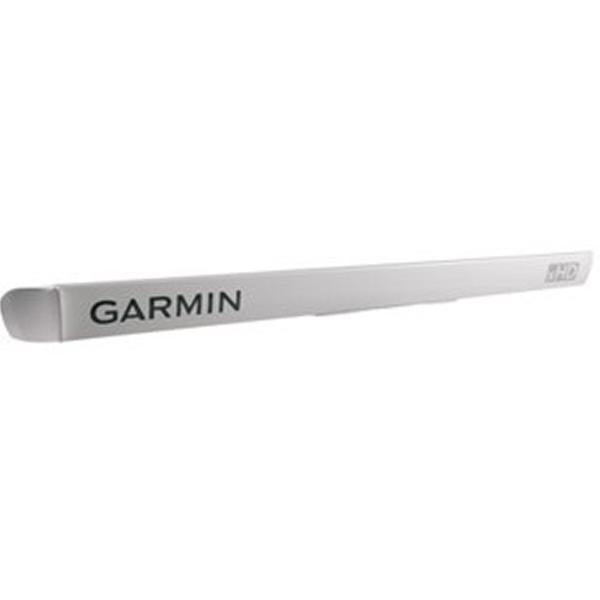

Garmin Gmr606 6Ft Open Array Antenne ( XHD ) Pedestal

Garmin Gmr606 6Ft Open Array Antenne ( XHD ) Pedestal

BTW (21%)
Product uit assortiment

Garmin Gmr606 6Ft Open Array Antenne ( XHD ) Pedestal
In de rubriek Garmin vindt u de producten en prijzen van Garmin. Een selectie Garmin producten die u kunt kopen zoals een radar, kaartplotter, stuurautomaat, marifoon, navigatie, transducer, edge, gps, forerunner, zumo, dakota, etrex, nuvi, gpsmap navigatie . Volledige fabrieksgarantie op de Garmin producten. Verzenden of afhalen is mogelijk.

Tips en advies

De gerelateerde producten in de rubrieken Radar Plotter en Stuurautomaat en Instrumenten zijn voor u mogelijk ook interessant.

Contact

Heeft u een vraag. Neem contact met ons op per Email voor tips en advies over de Garmin Gmr606 6Ft Open Array Antenne ( XHD ) Pedestal.

Specificaties

With the GMR 606 xHD open-array radar on your vessel, you’ll get a better view of the open waters around you. This powerful radar offers high-definition digital technology for superior target detection and image resolution. And with 6 kW of power, the 6-foot GMR 606 xHD will bring more detail and focus to your onboard marine network.

More Power for Better Data

The GMR 606 xHD is a 6-foot scanner with 1.1° beamwidth and selectable 24/48 RPM rotation speeds. This high-performance radar comes standard with 6 kW of power behind you so you'll have a more accurate picture on your surroundings. The GMR 606 xHD also features high-definition technology so you’ll get up to eight times more sampling data compared to our standard radar. With it, you'll get faster information acquisition and improved detection on small targets at a longer range.

Integrate With Ease

The GMR 606 xHD is easily added to your existing Garmin Marine Network. Once connected to the network, any network-compatible Garmin chartplotter can double as your radar screen. And as an aid to location-awareness, you can overlay the GMR 606 xHD radar image on the chartplotter's map page. You can also split the on-screen display so you can simultaneously view the map and standard radar or you can use the Dual Range feature to view close and distant targets on compatible 4000 and 5000-series chartplotters.

Physical & Performance:
Unit dimensions, WxHxD: 6' array: 75.75" x 5" x 5.25" (192.4 x 12.7 x 13.3 cm)
pedestal: 20.5" x 12.75" x 12.5" (52 x 32.4 x 31.8 cm)
Weight: array: 16.9 lb (7.7 kg); pedestal: 45.9 lb (20.8 kg)
Waterproof: yes (IPX6)
Antenna sweep: 24 and 48 rpm
Transmit power: 6 kW
Power input: 10 - 40 V DC, 55 W (typ), 145 W (max)
Beam width: 1.1° horizontal, 25° vertical
Maximum range: 72 nm
Minimum range: 20 meters



Features:
Garmin Marine Network™ compatible: yes
High definition (outstanding target separation with less screen clutter): yes
MARPA target tracking (collision avoidance): yes (requires heading sensor; sold separately)
Guard zone alarm: yes
Additional:

Dual-Range feature (view close and distant targets on compatible chartplotter split-screen display): yes
