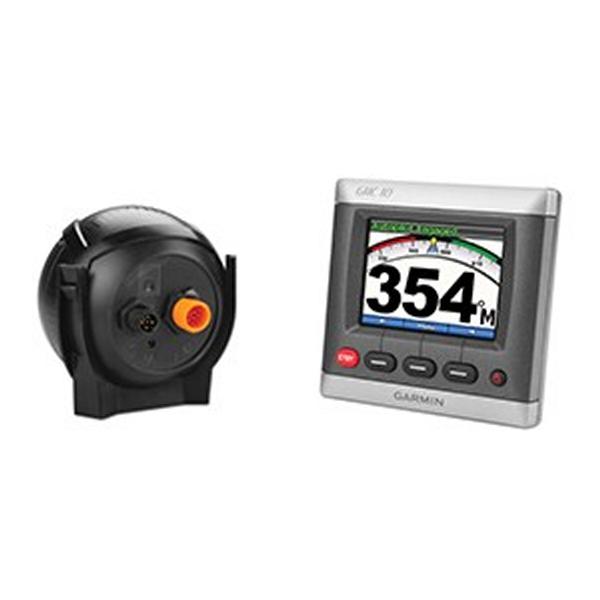

GARMIN GHP 20 Autopilot Corepack - Teleflex Steering

The GHP 20 for Steer-by-Wire brings our leading-edge marine autopilot technology to vessels with select steer-by-wire control systems, including the Teleflex Marine Optimus 360 by SeaStar®.

With a GHP 20 for Steer-by-Wire aboard your boat, you no longer need to be tied to your helm. In addition to holding its course in a virtually all weather and wind conditions, the system can perform a variety of pre-programmed trolling and search procedures. Plus, with a compatible Garmin network chartplotter and BlueChart g2 Vision® charts, you gain optional features like Auto Guidance, which automatically createsGPS routes for the pilot to follow.

The GHP 20 Steer-by-Wire’s patented Shadow Drive technology gives you the security of knowing you maintain control even when the autopilot is engaged. The Shadow Drive system automatically disengages the autopilot if the helm is turned, giving you the freedom to maneuver the boat. The autopilot automatically re-engages when you hold a steady course.

On Vessels with the Teleflex Optimus steering systems, the GHP 20 Steer-by-Wire autopilot provides unmatched autopilot performance. It works seamlessly with the Optimus 360’s revolutionary joystick steering/shift/throttle control system to negotiate the boat forward, backwards, diagonally, sideways or on its axis. Dynamic gain adjustments based on tachometer information provided by the Optimus system means the GHP 20 Steer-by-Wire offers optimal performance at all speeds.

Specifications

CCU Specs

• Dimensions: 3 19/32 in. diameter (91.4 mm)
• Weight: 5.6 oz. (159 g)
• Temperature range: From 5°F to 131°F (from -15°C to 55°C)
• Case material: Fully gasketed, high-impact plastic, waterproof to IEC 529 IPX7 standards
• CCU cable length: 9.5 ft. (3 m)
• NMEA 2000 power input: 9-16V
• NMEA 2000 LEN: 3 (150 mA)

GHC 10 Specs

• Dimensions: (W×H×D): 4 5/16 × 4 3/8 × 1 29/32 in. (109 × 48 × 111 mm)
• Weight: 9.6 oz. (272 g)
• Display type: QVGA color LCD display
• Display resolution: WxH, 320 x 240 pixels
• Cables (length): NMEA 0183 cable: 6 ft. (1.8 m); NMEA 2000 drop cable and power cable: 6.5 ft. (2 m)
• Temperature range: from 5°F to 158°F (from -15°C to 70°C)
• Compass safe distance: 9 ½ in. (241 mm)
• Case material: Fully gasketed, high-impact plastic alloy, waterproof to IEC 529 IPX7 standards
• Flush mountable design: Yes
• NMEA Output: NMEA 2000, NMEA 0183
• NMEA 2000 power input: 9–16 Vdc
• NMEA 2000 LEN: 6 (300 mA)

Buzzer/Alarm Specs

• Dimensions (L × Diameter): 29/32 in. × 1 in. (23 mm × 25 mm)
• Weight: 2.4 oz. (68 g)
• Temperature range: from 5°F to 131°F (from -15°C to 55°C)
• Cable length: 10 ft. (3.0 m)
