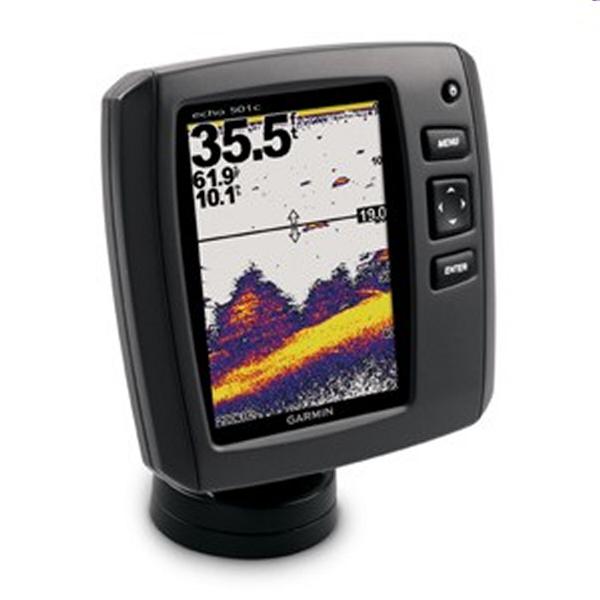

Garmin Echo 501C Fishfinder met transducer met dubbele bundel

Garmin Echo 501C Fishfinder met transducer met dubbele bundel

BTW (21%)
Product uit assortiment

Garmin Echo 501C Fishfinder met transducer met dubbele bundel
In de rubriek Garmin vindt u de producten en prijzen van Garmin. Een selectie Garmin producten die u kunt kopen zoals een radar, kaartplotter, stuurautomaat, marifoon, navigatie, transducer, edge, gps, forerunner, zumo, dakota, etrex, nuvi, gpsmap navigatie . Volledige fabrieksgarantie op de Garmin producten. Verzenden of afhalen is mogelijk.

Tips en advies

De gerelateerde producten in de rubrieken Radar Plotter en Stuurautomaat en Instrumenten zijn voor u mogelijk ook interessant.

Contact

Heeft u een vraag. Neem contact met ons op per Email voor tips en advies over de Garmin Echo 501C Fishfinder met transducer met dubbele bundel.

Specificaties

GARMIN Echo 501c Fishfinder With Dual Beam Transducer

A Powerfully Simple 5-inch Color Fishfinder
  • Exclusive advanced HD-ID™ sonar with or without a transducer (depending on version)
  • 5-inch diagonal QVGA color display
  • Transmit power (RMS)/(Peak-To-Peak): 500 W/4,000 W
  • Frequency: 77/200 kHz included (supports 50/200 kHz)
  • Quick-release tilt/swivel mount and transom/trolling motor transducer mounts included

The color echo 501c is a powerful, simple-to-use fishfinder featuring built-in advanced HD-ID sonar with or without a 77/200 kHz transducer (supports a 50/200 kHz transducer, sold separately).

Crisp 5-inch QVGA color display offers extra sharp resolution and detail on fish, structure and bottom returns with the power to scan to a 2,300-foot maximum¹ depth. With its simple, streamlined interface with 4,000 W peak-to-peak power, the echo 501c has wide viewing-cone angles (60/120 degrees) optimized for targeting fish beyond the sides of the boat in deep or shallow water. Also includes Smooth Scaling™ depth-range adjustments and sonar history rewind.

Mount and Go

Ready-to-go with a quick-release tilt/swivel mount and transom/trolling transducer mount kit, so you can get right to fishing.

¹Maximum depth dependent on transducer, water, salinity, bottom type and other water conditions.

Physical & Performance
Unit dimensions, WxHxD 6.0" x 5.9" x 1.8" (15.2 x 15.0 x 4.6 cm)
Display size, WxH 2.9” x 4.0” (7.4 x 10.16 cm); 5” diag, (12.7 cm)
Display resolution, WxH 234 x 320 pixels
Display type QVGA color
Weight 17.6 oz (499 g)
Waterproof Yes (IPX7)
Features & Benefits
Audible alarms Yes
Dual-frequency (50/200 kHz) sonar capable Yes
Dual-beam (77/200 kHz) sonar capable Yes
Split-screen zoom Yes
Ultrascroll® (displays fish targets at higher boat speeds) Yes
Fish Symbol ID (helps identify fish targets) Yes
AutoGain Technology (minimizes clutter, maximizes targets) Yes
Whiteline (indicates hard or soft bottom) Yes
Adjustable depth line (measures depth of underwater objects) Yes
A-scope (real time display of fish passing through transducer beam) Yes
Bottom lock (shows return from the bottom up) Yes
Water temperature log and graph Yes
Water temperature sensor included Yes
Water speed capable (displays speed on water) Yes
Other Specs
Frequencies supported 50/77/200 kHz
Transmit power 500 W (RMS)/4,000 W (peak to peak)
Voltage range 10-28 Vdc input
Maximum depth 2300 ft @ 77 kHz, freshwater
Cone angle 60º or 120º (dual beam)
Additional

HD-ID Tracking Technology

Sonar History Rewind


What's in the box
  • echo 501c
  • Dual-beam transducer with transom mount and trolling motor mount
  • Tilt/swivel quick-release mount
  • Power cable
  • Documentation
