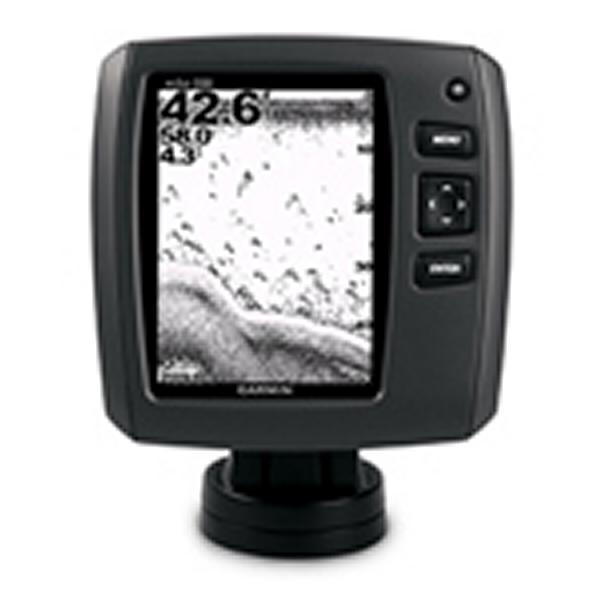

Garmin Echo 200 Fishfinder Dieptemeter met Hek Transducer

Garmin Echo 200 Fishfinder Dieptemeter met Hek Transducer

BTW (21%)
Product uit assortiment

Garmin Echo 200 Fishfinder Dieptemeter met Hek Transducer
In de rubriek Garmin vindt u de producten en prijzen van Garmin. Een selectie Garmin producten die u kunt kopen zoals een radar, kaartplotter, stuurautomaat, marifoon, navigatie, transducer, edge, gps, forerunner, zumo, dakota, etrex, nuvi, gpsmap navigatie . Volledige fabrieksgarantie op de Garmin producten. Verzenden of afhalen is mogelijk.

Tips en advies

De gerelateerde producten in de rubrieken Radar Plotter en Stuurautomaat en Instrumenten zijn voor u mogelijk ook interessant.

Contact

Heeft u een vraag. Neem contact met ons op per Email voor tips en advies over de Garmin Echo 200 Fishfinder Dieptemeter met Hek Transducer.

Specificaties

echo 200’s five-inch greyscale display and 300-watt (RMS) sonar lets you see more for less than you might imagine.

Make the Most of HD-ID Technology

This versatile fishfinder combines easy operation with a powerful 300 watts (RMS) of high-sensitivity sonar and a big five-inch greyscale display. Coupled with Garmin’s exclusive HD-ID target tracking technology, you’ll get a clear picture of what lies below you, virtually eliminating guesswork from your day on the water. The system’s dual-beam transducer scans deep water to 1,500 ft with a wide scanning angle perfect for shallow water, as well.

For an uninterrupted view of the sonar image, echo 200 boasts Garmin Smooth Scaling™ technology, which means you won’t lose sight of the sonar history as the unit changes depth ranges. It also allows you to rewind your sonar history to ensure that you haven't missed a thing.

Mount and Go

echo 200 is one of the most intuitive fishfinders on the market. Installation takes only a few minutes using the quick-release tilt mount and versatile transom-mount transducer included in the box.



echo 200 features:

  • Garmin HD-ID™ technology
  • 300 watts (RMS) transmit power
  • Depths to 1,500 ft
  • Beam width to 120 degrees
  • Five-inch greyscale display
  • Tilt/swivel mount, transducer, trolling motor clamp and transom mount

    Physical & Performance:

    Unit dimensions, WxHxD: 6.0” x 5.9” x 1.8” (15.2 x 15.0 x 4.6 cm)
    Display size, WxH: 2.9”W x 4.0”H (7.4 x 10.16 cm); 5” diag, (12.7 cm)
    Display resolution, WxH: 320 x 480 pixels
    Display type: HVGA greyscale
    Weight: 17.6 oz (499 g)
    Waterproof: yes (IPX7)

    Features:

    Audible alarms: yes
    Dual-frequency sonar capable: no
    Dual-beam sonar capable : yes
    Split-screen zoom: yes
    Ultrascroll™ (displays fish targets at higher boat speeds): yes
    Fish Symbol ID (helps identify fish targets): yes
    AutoGain Technology (minimizes clutter, maximizes targets): yes
    Whiteline (indicates hard or soft bottom): yes (always on)
    Adjustable depth line (measures depth of underwater objects): yes
    A-scope (real time display of fish passing through transducer beam): yes
    Bottom lock (shows return from the bottom up): yes
    Water temperature log and graph: yes
    Water temperature sensor included: yes
    Water speed capable (displays speed on water): yes

    Other:

    Frequency: 200/77 kHz
    Transmit power: 300W (RMS)/2,400W (peak to peak)
    Voltage range: 10V - 28V input
    Maximum depth: 1,500 ft freshwater*
    Cone angle: 60º or 120º (dual beam)
    Additional: *Depth capacity is dependent on water bottom type and other water conditions



    What's in the Box:

    • echo 200
    • Quick release mount with tilt and swivel
    • Power cable
    • Transducer w/ mounting bracket, hardware and trolling motor clamp
    • Documentation
