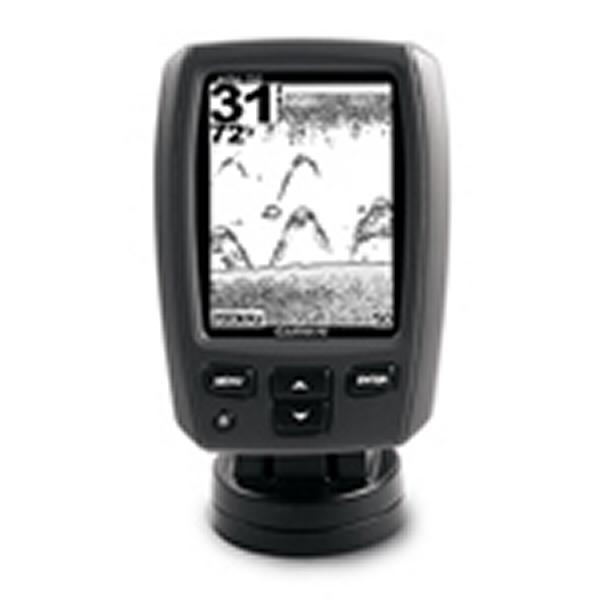

Garmin Echo 150 Fishfinder Dieptemeter met Hek Transducer

Garmin Echo 150 Fishfinder Dieptemeter met Hek Transducer

BTW (21%)
Product uit assortiment

Garmin Echo 150 Fishfinder Dieptemeter met Hek Transducer
In de rubriek Garmin vindt u de producten en prijzen van Garmin. Een selectie Garmin producten die u kunt kopen zoals een radar, kaartplotter, stuurautomaat, marifoon, navigatie, transducer, edge, gps, forerunner, zumo, dakota, etrex, nuvi, gpsmap navigatie . Volledige fabrieksgarantie op de Garmin producten. Verzenden of afhalen is mogelijk.

Tips en advies

De gerelateerde producten in de rubrieken Radar Plotter en Stuurautomaat en Instrumenten zijn voor u mogelijk ook interessant.

Contact

Heeft u een vraag. Neem contact met ons op per Email voor tips en advies over de Garmin Echo 150 Fishfinder Dieptemeter met Hek Transducer.

Specificaties

Low cost meets surprising performance in echo 150, a dual-beam fishfinder with four-inch greyscale display.

Get More Power for the Price

With dual-beam technology at a single-beam price, echo 150 is the sport fisherman’s dream. With 200 watts (RMS) power, you can accurately scan to depths of 1,300 ft in fresh water. In shallower water, a viewing angle of up to 120 degrees lets you see fish well beyond the sides of your boat. And to take even more guesswork out of the equation, Garmin’s exclusive HD-ID target tracking technology provides you with better separation and definition of images on a crisp four-inch greyscale display.

Mount and Go

The included quick-release tilt mount and versatile transom-mount transducer make installation a simple and straightforward. Plus, echo 150’s compact design will keep it out of your way all day long – even on smaller craft.

echo 150 features:

  • Garmin HD-ID™ technology
  • 200 watts (RMS) transmit power
  • Depths to 1,300 ft
  • Beam width to 120 degrees
  • Four-inch, eight-level FSTN greyscale display
  • Tilt/swivel mount, transducer, trolling motor clamp and transom mount



    Physical & Performance:

    Unit dimensions, WxHxD: 4.1" x 5.8" x 2.8" (10.4 x 14.7 x 7.1 cm)
    Display size, WxH: 2.38" x 3.21" (6.04 x 8.15 cm); 4” diag, (10.16 cm)
    Display resolution, WxH: 160 x 256 pixels
    Display type: Eight-level greyscale FSTN
    Weight: 9.5 oz (270 g)
    Waterproof: yes (IPX7)

    Features:

    Audible alarms: yes
    Dual-frequency sonar capable: no
    Dual-beam sonar capable : yes
    Split-screen zoom: no
    Ultrascroll™ (displays fish targets at higher boat speeds): yes
    Fish Symbol ID (helps identify fish targets): yes
    AutoGain Technology (minimizes clutter, maximizes targets): yes
    Whiteline (indicates hard or soft bottom): yes (always on)
    Adjustable depth line (measures depth of underwater objects): no
    A-scope (real time display of fish passing through transducer beam): no
    Bottom lock (shows return from the bottom up): no
    Water temperature log and graph: no
    Water temperature sensor included: yes
    Water speed capable (displays speed on water): no

    Other:

    Frequency: 200/77 kHz
    Transmit power: 200W (RMS)/1,600W (peak to peak)
    Voltage range: 10V - 20V input
    Maximum depth: 1,300 ft freshwater*
    Cone angle: 60º or 120º (dual beam)
    Additional: *Depth capacity is dependent on water bottom type and other water conditions



    What's in the Box:

    • echo 150
    • Quick release mount with tilt and swivel
    • Power cable
    • Transducer w/ mounting bracket, hardware and trolling motor clamp
    • Documentation







    		•
