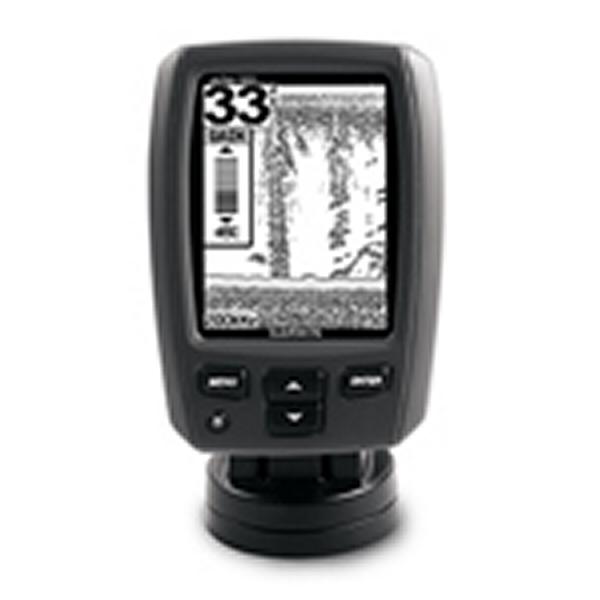

Garmin Echo 100 Fishfinder Dieptemeter met Hek Transducer

Garmin Echo 100 Fishfinder Dieptemeter met Hek Transducer

BTW (21%)
Product uit assortiment

Garmin Echo 100 Fishfinder Dieptemeter met Hek Transducer
In de rubriek Garmin vindt u de producten en prijzen van Garmin. Een selectie Garmin producten die u kunt kopen zoals een radar, kaartplotter, stuurautomaat, marifoon, navigatie, transducer, edge, gps, forerunner, zumo, dakota, etrex, nuvi, gpsmap navigatie . Volledige fabrieksgarantie op de Garmin producten. Verzenden of afhalen is mogelijk.

Tips en advies

De gerelateerde producten in de rubrieken Radar Plotter en Stuurautomaat en Instrumenten zijn voor u mogelijk ook interessant.

Contact

Heeft u een vraag. Neem contact met ons op per Email voor tips en advies over de Garmin Echo 100 Fishfinder Dieptemeter met Hek Transducer.

Specificaties

With state-of-the-art target tracking technology and a four-inch greyscale display, echo 100 brings a new level of fishfinding capability to the budget-minded boater.

See More for Your Money

Thanks to Garmin’s exclusive HD-ID target tracking technology, you’ll see enhanced separation and definition of images on echo 100’s fast refreshing, four-inch greyscale display. The single-beam (200kHz) transmitter with 100 watts (RMS) of sonar power lets you scan to depths of up to 600 ft – ample for most freshwater lakes and coastal water.

Save Valuable Space

echo 100’s compact design makes it the perfect companion for even small craft. Plus, its quick-release tilt mount and versatile transom-mount transducer are included in the box to make installation simple and straightforward.

echo 100 features:

  • Garmin HD-ID™ technology
  • Compact design for smaller boats
  • 100 watts (RMS) transmit power
  • Depths to 600 ft
  • Beam width to 60 degrees
  • four-inch, eight-level FSTN greyscale display
  • Tilt/swivel mount, transducer, trolling motor clamp and transom mount



    Physical & Performance:

    Unit dimensions, WxHxD: 4.1" x 5.8" x 2.8" (10.4 x 14.7 x 7.1 cm)
    Display size, WxH: 2.38" x 3.21" (6.04 x 8.15 cm); 4” diag, (10.16 cm)
    Display resolution, WxH: 160 x 256 pixels
    Display type: Eight-level greyscale FSTN
    Weight: 9.5 oz (270 g)
    Waterproof: yes (IPX7)

    Features:

    Audible alarms: yes
    Dual-frequency sonar capable: no
    Dual-beam sonar capable : no
    Split-screen zoom: no
    Ultrascroll™ (displays fish targets at higher boat speeds): yes
    Fish Symbol ID (helps identify fish targets): yes
    AutoGain Technology (minimizes clutter, maximizes targets): yes
    Whiteline (indicates hard or soft bottom): yes (always on)
    Adjustable depth line (measures depth of underwater objects): no
    A-scope (real time display of fish passing through transducer beam): no
    Bottom lock (shows return from the bottom up): no
    Water temperature log and graph: no
    Water temperature sensor included: yes
    Water speed capable (displays speed on water): no

    Other:

    Frequency: 200 kHz
    Transmit power: 100W (RMS)/800W (peak to peak)
    Voltage range: 10V - 20V input
    Maximum depth: 600 ft freshwater*
    Cone angle: 60º (single beam)
    Additional: *Depth capacity is dependent on water bottom type and other water conditions.



    What's in the Box:

    • echo 100
    • Quick release mount with tilt and swivel
    • Power cable
    • Transducer w/mounting bracket, hardware and trolling motor clamp
    • Documentation





    		•
