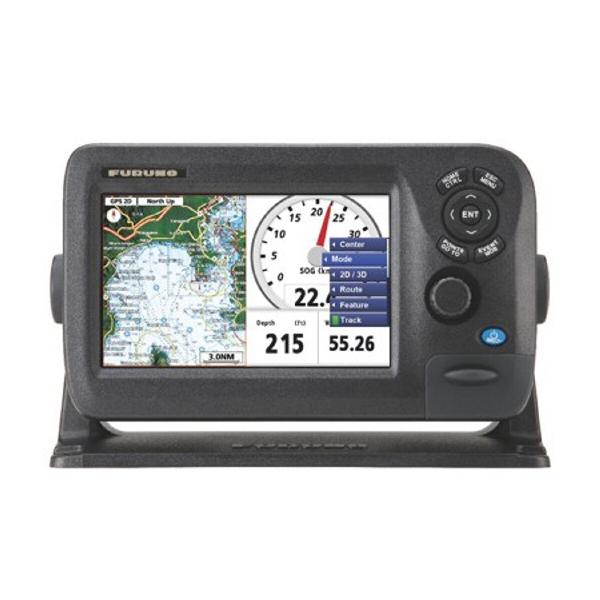

FURUNO GP1870 7 INCH KLEUREN PLOTTER

FURUNO GP1870 7 INCH COLOUR PLOTTER

GP-1870/1870F features

• Bright 900 cd/m2 LCD gives excellent readability even in direct sunlight
• The LCD and AR glass are bonded together to ensure no fogging issues
• Clear visibility even when wearing polarized sunglasses
• Internal GPS antenna for simple and easy installation
• Standard C-Map 4D chart available on SD card
• RotoKeyTM revolving menu and familiar point-and-click operation
• Internal memory: Waypoint/Track 30,000 points, Route 1,000 routes

RotoKey™

The RotoKey™ has a two-fold function. Rotate the knob for a .nely stepped zoom control. Push the knob to get full access to GP-1870/1870F controls.

Polarized Friendly - Clearly Remarkable

The GP-1870 series has an LCD screen that does not "black out" when wearing polarized sunglasses, providing clear visibility from virtually any angle.

Dual Range Chart Display

In "Dual Range Chart Display" mode, the GP-1870 series displays dual charts, both long and short range, at the same time.

Bonded LCD - Clear Readability

Our bonded LCDs offer a fog-free structural design. This ensures that the display will never be affected by water condensation, caused by an air gap between the LCD and the front cover plate.

Easy Replacement from legacy models

Optional bezel kit is available allowing for easy replacement from Furuno GP-1650, GP-1850 and GP-7000 series.

Display Unit

Screen Type Color TFT LCD

Screen Size 7" WIDE

Screen Resolution 800 x 480 pixels (WVGA)

Screen Brightness 900 cd/m2 (typical)

Language English (US & UK), French, Spanish, German, Italian,

Portuguese, Danish, Swedish, Norwegian, Finnish,

Greek, Japanese, Chinese, Russian, Thai, Vietnamese,

Polish, Bahase Malaysia, Bahasa Indonesia

Display Modes Course plot, Nav Data, Instruments*, Engine monitor*,

Anemometer*, Fuel level gauge*, GPS status,

Fish -nder** *External sensors required **GP-1870F only

Memory Capacity 30,000 points for ship's track and wayponts

1,000 planned routes (Max. 50 points per route)

5,000 quickpoints

Interface CAN bus: 1 port

Mini USB*: 1 port (2.0) *for maintenance only

SD card Slot: 1 slot (Acceptable up to 32 GB)

Chart C-MAP 4D

Other Functions AIS target display* *AIS sensor required

Temperature -15°C to +55°C

Waterproo-ng IP56

Power Supply 12-24 VDC

Consumption Current GP-1870: 0.6 - 0.3 A

GP-1870F: 1.0 - 0.5 A (When 600 W transducer used)

GPS / WAAS

Receiving Type GPS: 50 channels WAAS: 1 channel

Receiving Frequency L1 (1575.42 MHz)

Accuracy Internal antenna : GPS 10 m Max / MSAS 7 m Max

External antenna*: GPS 10 m Max / MSAS 7 m Max

*GPA-017 (Option)

Time to First FIX 90 s (cold start)

Tracking Velocity 999 Kn

SBAS WAAS, EGNOS, MSAS
