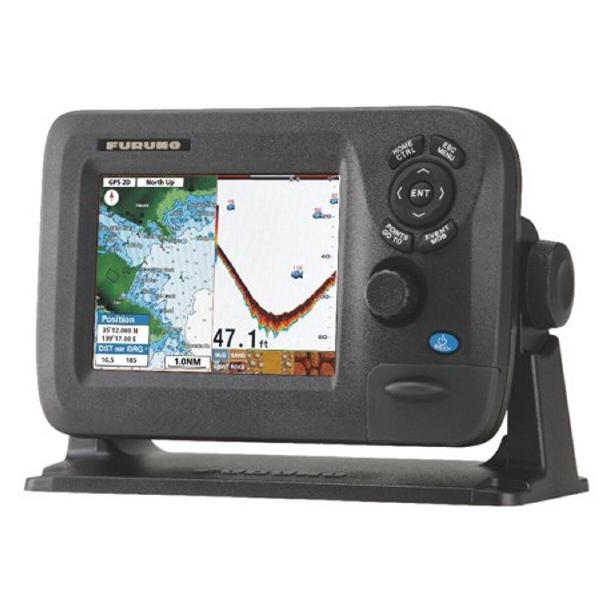

FURUNO GP1670F 5.7 INCH COLOUR PLOTTER/SOUNDER
GP-1670/1670F features
GP-1670F features
RotoKey™
The RotoKey™ has a two-fold function. Rotate the knob for a .nely stepped zoom control. Push the knob to get full access to GP-1670/1670F controls.
Polarized Friendly - Clearly Remarkable
The GP-1670 series has an LCD screen that does not "black out" when wearing polarized sunglasses, providing clear visibility from virtually any angle.
Dual Range Chart Display
In "Dual Range Chart Display" mode, the GP-1670 series displays dual charts, both long and short range, at the same time.
Bonded LCD - Clear Readability
Our bonded LCDs offer a fog-free structural design. This ensures that the display will never be affected by water condensation, caused by an air gap between the LCD and the front cover plate.
Easy Replacement from legacy models
Optional bezel kit is available allowing for easy replacement from Furuno GP-1650, GP-1850 and GP-7000 series.
Display Unit
Screen Type Color TFT LCD
Screen Size 5.7"
Screen Resolution 640 x 480 pixels (VGA)
Screen Brightness 800 cd/m2 (typical)Language English (US & UK), French, Spanish, German, Italian,
Portuguese, Danish, Swedish, Norwegian, Finnish,
Greek, Japanese, Chinese, Russian, Thai, Vietnamese,
Polish, Bahase Malaysia, Bahasa Indonesia
Display Modes Course plot, Nav Data, Instruments*, Engine monitor*,
Anemometer*, Fuel level gauge*, GPS status,
Fish -nder** *External sensors required **GP-1670F only
Memory Capacity 30,000 points for ship's track and wayponts
1,000 planned routes (Max. 50 points per route)
5,000 quickpoints
Interface CAN bus: 1 port
Mini USB*: 1 port (2.0) *for maintenance only
SD card slot: 1 slot (up to 32 GB)
Chart C-MAP 4D
Other Functions AIS target display* *AIS sensor required
Temperature -15°C to +55°C
Waterproo-ng IP56
Power Supply 12-24 VDC
Consumption Current GP-1670: 0.5 - 0.3 A
GP-1670F: 0.9 - 0.5 A (When 600 W transducer used)
GPS / WAAS
Receive Type GPS: 50 channels WAAS: 1 channel
Receiving Frequency L1 (1575.42 MHz)
Accuracy Internal antenna : GPS 10 m Max / MSAS 7 m Max
External antenna*: GPS 10 m Max / MSAS 7 m Max
*GPA-017 (Option)
Time to First FIX 90 s (cold start)
Tracking Velocity 999 Kn
SBAS WAAS, EGNOS, MSAS
Fish Finder (for GP-1670F only)
Transmit Frequency 50/200 kHz
Transmission 600 W or 1 kW* *Matching box MB-1100 required for certain transducers
Display Range 5 - 1,200 m, shift: 0 - 1,200 m
Extension Mode ACCU-FISH*, Auto (Fishing/Cruising/Manual), A-Scope,
Marker Zoom, Bottom Zoom, Bottom Lock, Bottom
Discrimination*
Picture Advance 7 steps: 2/1, 1/1, 1/2, 1/4, 1/8, 1/16, stop
*In some instances, bottom component or -sh size indicated on the GP-1670F may differ from its
actual size or structure. Please carefully read the operation manual prior to using this feature.
