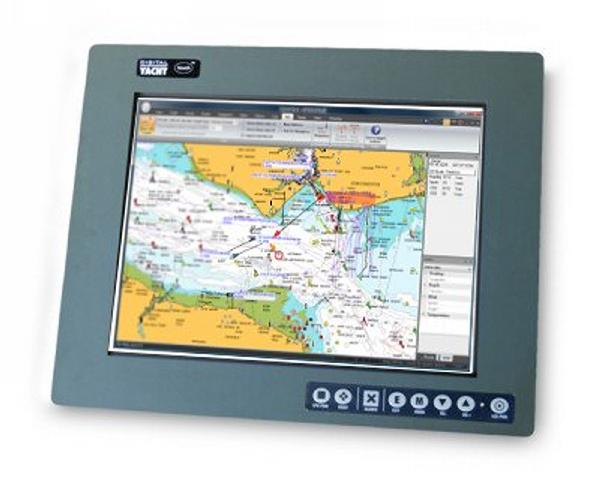

Digital Yacht Touch Systeem 12 inch monitor 12V

 12” RESISTIVE TOUCH SCREEN LCD MONITOR

• Slim, light and reliable.

• 1024 x 768 pixel resolution, ideal for displaying complex graphics and high definition images.
   High brightness and ultra-wide viewing angle with anti-glare features.

• All kinds of touch input devices can activate the screen, including fingers, fingernails, styluses, gloved hands, and credit cards.

• Plug and play compatibility

• Advanced OSD (On Screen Display) controls for picture quality adjustment

• Extra On-Screen buttons to enable easy power control of the CPU, CPU restart and audio silencing.

• Offers all standard video interfaces for input sources from PC or multimedia system: VGA-in, DVI, S-video

• Tested and complies with FCC limits for a Class A digital device.

• Panel mounting, wall mounting and desktop stand options

SPECIFICATIONS

Dimensions - 340 x 260 x 46.5mm
Construction - Heavy-duty chassis
Net weight - 3.5 kgs
Power - 12v DC
Brightness - 400 nits
Control - OSD (On Screen Display) control pad on front side
Operating Temp. Range = -10°C ~ 55°C
Relative Humidity - 20% ~ 90% non-condensing

Note - Not waterproof so must be mounted below decks

Approvals

Tested and complies with the limits for a Class A
digital device, pursuant to Part 15 of the FCC Rules.

8. CPU PWR
7. CPU Reset
6. Silence
5. Exit
4. Menu (turns on/off the On Screen Display main menu or press to activate selected items)
3. SEL -
2. SEL + (to scroll up the menu or increase the value of a selected item)
1. LCD Power button + Power LED

7. Power.
6. Processor Control
5. DVI port
4. VGA
3. Video
2. S-Video
1. T/S
