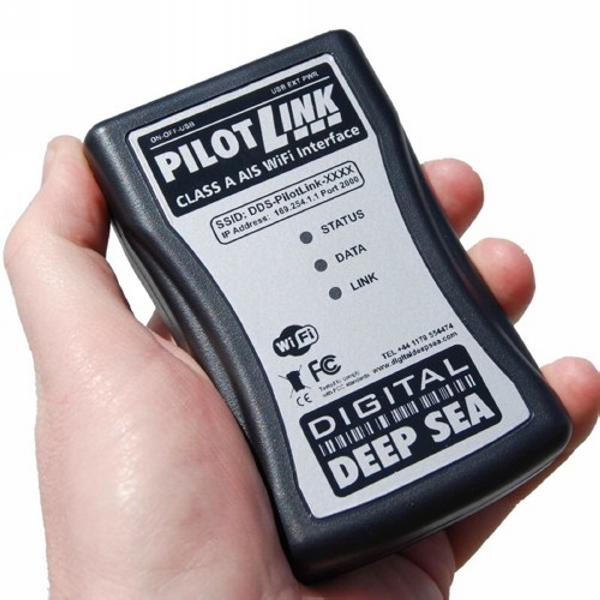

DIGITAL YACHT PILOTLINK CLASS A AIS WI-FI INTERFACE

“Connects to the pilot plug interface so iPad, iPhones and other tablets can share the AIS data via a wifi link”

KEY FEATURES

PilotLINK is a wireless interface for Class A AIS systems. All Class A transponders share a common “Pilot Plug” connector that PilotLINK connects directly to via a 1m cable. PilotLINK then creates a wifi navigation network on board the vessel which allows AIS and GPS data from the Class A to be sent directly to any connected mobile devices such as phones or tablets. It’s compatible with iOS and Android systems (depending upon app utilised) as well as PC & MAC based systems.

PilotLINK is stand alone and can operate from its internal, user replaceable, dry battery (PP3) for up to 15 hours. Alternatively, it can connect via a standard mini USB connector to any USB style power pack or AC/DC USB power adaptor that are readily available from many 3rd parties.

PilotLINK is compatible with a wide variety of apps and PC programs. iAIS is a free of charge app from Digital DeepSea which gives a basic AIS radar type display and target information. It’s also compatible with iSailor and iNavX - both popular charting/AIS products and many other 3rd party apps available through the Apple App store or Google Play on Android.

PilotLINK can also interface with a PC or MAC. Popular navigation programs such as SmarterTrack, SeaPro, RosePoint and MaxSea for PCs or macENC for a Mac are all compatible. PilotLINK ships with a complimentary copy of SmarterTrack Lite - a full featured AIS display program for Windows PCs.

SPECIFICATIONS

• Wireless Interface for Class A AIS Transponders
• Reads GPS and AIS data directly from the transponders Pilot Plug
• Supports bi-directional communication for configuring the transponder
• Uses standard NMEA data for maximum compatibility with software applications
• Free iAIS App for iPhone, iTouch or iPad
• Complimentary copy of SmarterTrack Lite for PCs
• Creates a wireless access point with a typical range of 30m
• Transmits data via TCP/UDP link
• TCP allows single device connection while UDP allows multiple devices to receive the data
• Fully compatible with many popular Apps and software programs
• Rugged handheld design can be fitted with optional rubber jacket
• Powered from internal 9v PP3 battery or optional external USB power source

SUPPLIED WITH:

• 1m Pilot Plug cable and User
• Manual
