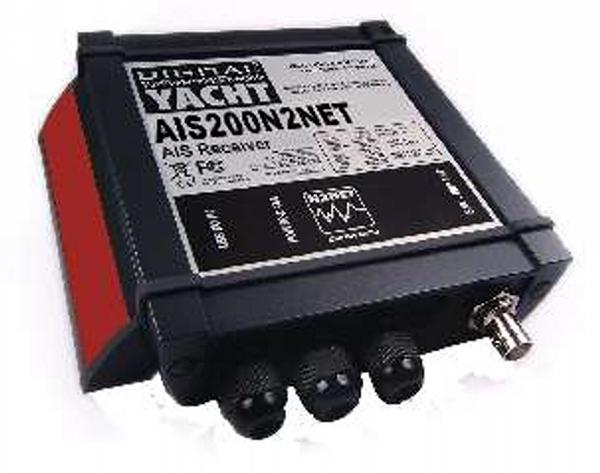

Digital Yacht Ais200N2Net AIS-ontvanger ( Nmea0183/2000 )

Tips en advies

Contact

Specificaties

Our top of the range AIS receiver withTri-Output connectivity, features the very latest AIS technology, to give un-rivalled levels of reception and data through put. With easy connections to all of the latest PC navigation software and chart plotters,  such as the latest Garmin, Raymarine, Navico, Standard Horizon and Furuno units, the AIS200N2NET matches and exceeds the performance of other more expensive, big brand AIS receivers.

With NMEA 2000, dual NMEA 0183 and USB outputs connection, interfacing and installation is simple and the AIS200N2NET supports all of the latest AIS message types including AIS SARTs, AtoNs and base stations.

Connected to existing VHF antenna (via a splitter) or dedicated AIS antenna, you’ll receive all AIS targets within range – typically up to 30nm.  Simple plug and play USB connection to a PC, the AIS200N2NET is automatically mapped to an available "virtual" com port, which your PC software can read. Also compatible with Mac OS X and all LINUX Kernels since V2.4.20.

The AIS200N2NET has dual NMEA0183 outputs; one output provides just AIS data, whilst the other multiplexes AIS data with whatever NMEA 0183 data it receives on the NMEA input (4800 baud). With NMEA 2000 and USB output capability, the AIS200N2NET can provide AIS feeds to multiple equipment at the same time, great for larger more complex installations

KEY FEATURES:

• Latest generation AIS Technology  – featuring a brand new AIS receiver design
• Tri-Output; NMEA2000, NMEA0183 and USB PC
• High performance dual channel AIS receiver for use with existing plotter and radar systems
• Rugged IPX5 aluminium housing
• USB Interface for simple Plug and Play connection to a PC
• Two NMEA 0183 outputs (38,400 baud)
• Requires VHF antenna or dedicated AIS antenna (available as optional accessory) or splitter
• Multiplexed NMEA input for single NMEA GPS+AIS data output at 38,400 baud
• Simple “fit and forget” black box solution
