Comar NMEA-2-WIFI NMEA 0183 naar Wifi Converter

Comar NMEA-2-WIFI NMEA 0183 naar Wifi Converter

BTW (21%)
Product uit assortiment

Comar NMEA-2-WIFI NMEA 0183 naar Wifi Converter
In de rubriek Comar vindt u de producten en prijzen van Comar. Een selectie Comar producten die u kunt kopen zoals een AIS ontvanger, AIS splitter, AIS transponder, GPS ontvanger. Volledige fabrieksgarantie op de Comar producten. Verzenden of afhalen is mogelijk.

Tips en advies

De gerelateerde producten in de rubrieken AIS en AIS Toebehoren en GPS zijn voor u mogelijk ook interessant.

Contact

Heeft u een vraag. Neem contact met ons op per Email voor tips en advies over de Comar NMEA-2-WIFI NMEA 0183 naar Wifi Converter.

Specificaties

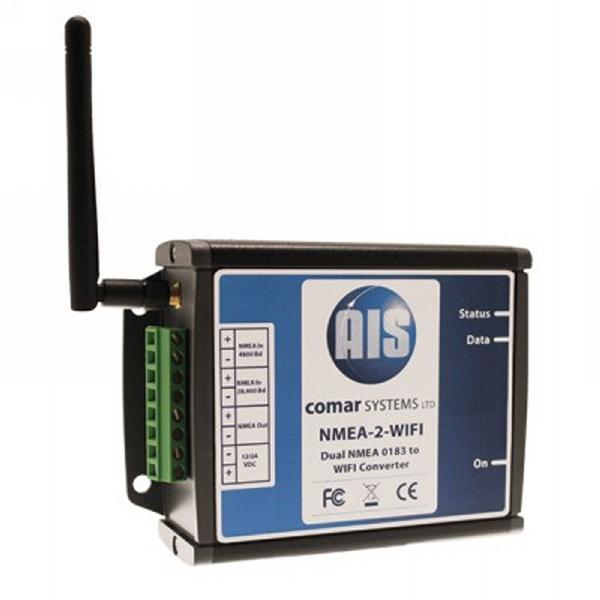

COMAR NMEA 0183 TO WIFI CONVERTOR

The NMEA-2-WIFI unit provides a low cost method of setting up a wireless network on board and to use available Apps on your iPhone, iPad or PC to display all your electronic data including position, AIS data, depth, wind, compass etc.

Simple to set up, the NMEA-2-WIFI unit has 2 NMEA inputs which are multiplexed to a single high speed data output which transmits NMEA 0183 data over WIFI for viewing on a smart phone or tablet using suitable Apps or a PC Navigation program, and provides 2 way communication between the WIFI device and any suitable NMEA devices. With 2 inputs, it can accept NMEA 0183 data at 4800 from any GPS, Chart plotter or Instruments, plus a 38400 baud input from any AIS receiver or transponder, so you only need one unit to collect and transmit all the navigation data to your portable device over WIFI.

For a vessel with a chart plotter at the nav station, using the Comar NMEA-2-WIFI, the helmsman can view all the navigation data on deck via an iPad or iPhone and for boats with the chart plotter at the helm you can check all the critical navigation data down below, making your boats data truly portable.

Note: The unit can only connect to one device at a time. A suitable App or Program is required.

Features include:

  • DUAL NMEA 0183 INPUT
  • BUILT IN NMEA MULTI PLEXER
  • INPUT AT 4800 AND 38.4 KBD
  • NMEA 0183 OUTPUT AT 38.4 KBD
  • POWER, DATA, STATUS LEDS
  • 12/ 24 VOLTS DC POWERED
  • WIFI CERTIFIED
  • 2.4 GHZ IEEE 802.11B/G
  • TRANSMIT POWER + 12DBM
  • EXTERNAL ANTENNA
  • SIMPLE SETUP CONNECTION
  • DIMENSIONS: 120 X 85 X 37 mm
