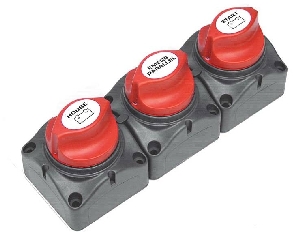

BEP BATTERY SWITCH CLUSTER (3 schakelaars)

Poor quality battery switches are regularly found to be the weak link in any battery system. The BEP range of high quality switches ensure minimal resistance while complementing any modern boat’s aesthetics. The Battery Switch Cluster is perfect for single engine boats with two battery banks and provides a battery switch for each battery and an emergency parallel switch. Sweep style self cleaning contacts Keeps batteries completely isolated Designed to be used in conjunction with an existing split charge unit (eg SmartBank, a VSR or blocking diodes) Make before break contactors (allows you to switch between 1, both and 2 while the engine is running) Rated at 275A continuous, 1250A Surge Knobs are removable for security Fully tinned metal parts to resist corrosion Suitable for use inside or outside Cables can enter from the rear and sides of the switch (removable plates allow easy side entry) Heavy Duty M10 (3/8”) terminals Can be surface or panel mounted Specifications Battery Switch Cluster Designed for: 12 & 24V DC Systems Rating: 275A - Continuous, 455A – Intermittent, 1250A - Cranking Dimensions (HxWxD): 68 x 204 x 75 mm
